Manufacturer's Part Number: 1650002
Inductive Sensor. Slot-type. Ident. no.: 1650002. Slot sensor, height 10 mm. Plastic, PBT GF30 V0. DC 3-wire, 10
30 VDC. NO contact, PNP output. Cable connection
- Design:
- Slot sensor
- Construction size:

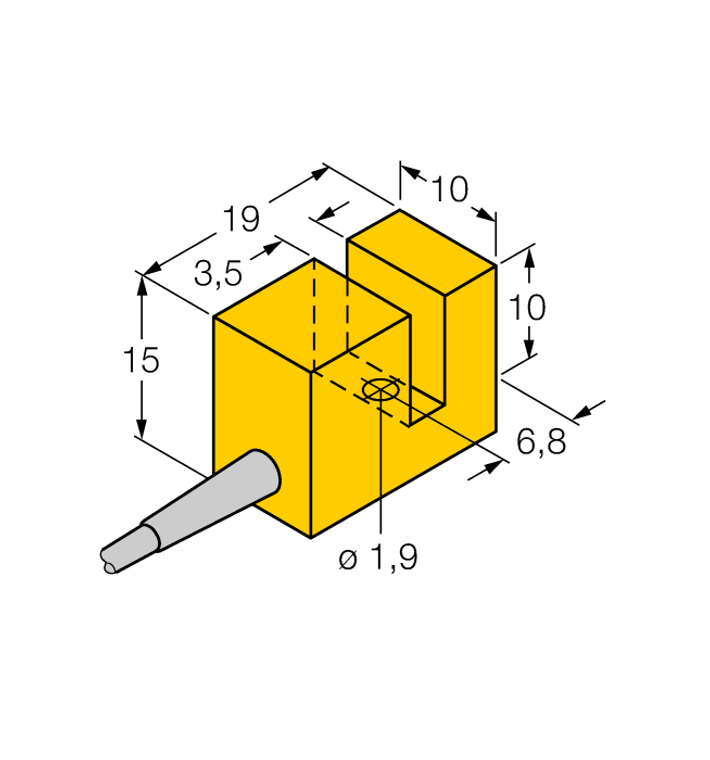

- 19 x 15 x 10 mm, K10
- Slot width:
- 3.5 mm
- Operating voltage:
- 10?à30 VDC
- Output function:
- NO contact, PNP
- Switching frequency:
- 2.0 kHz
- Electrical connection:
- Cable
- Cable length (L):
- 2.0 m
- Housing material:
- Plastic, PBT-GF30-V0
- Ambient temperature:
- -25?à+70 ??C
- Protection class:
- IP67
- Catalog:
- View
- Datasheet:
- View
