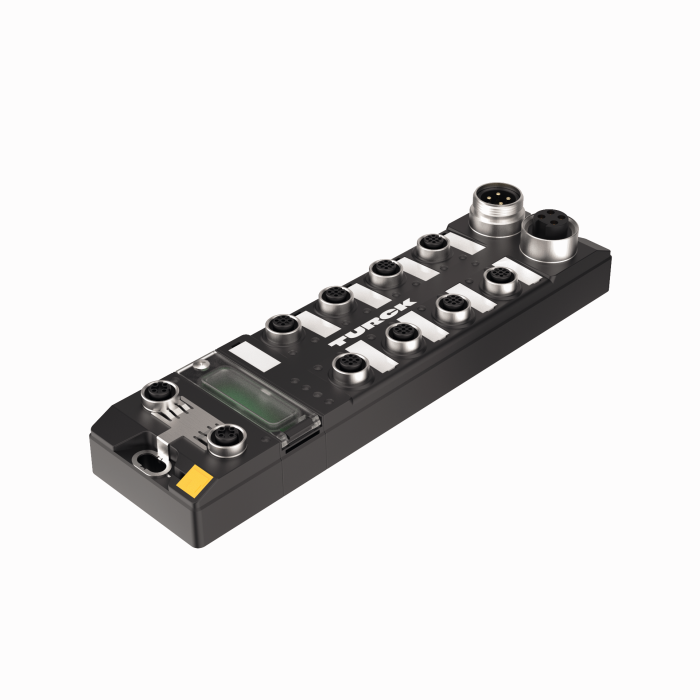

Turck Tben-L4-16Dxn Block-Io 6814064
Turck
$789.90
Manufacturer's Part Number: 6814064
Compact Multiprotocol I/O Module for Ethernet. 16 digital channels, configurable as NPN inputs or 1 A outputs. Ident. no.: 6814064. PROFINET device, EtherNet/IP device or Modbus TCP server. Integrated Ethernet switch. Supports 10 Mbps/100 Mbps. 2 × M12, 4-pin, D-coded, Ethernet fieldbus connection. PROFINET S2 system redundancy. Glass fiber reinforced housing. Shock and vibration tested. Fully potted module electronics. Protection classes IP65, IP67, IP69K. 7/8 male connector for power supply, 4-pin. Galvanically isolated voltage groups. ATEX Zone 2/22. Input diagnostics per port. Max. 1 A per output. Output diagnostics per channel. Two freely selectable digital channels per port. Programmable ARGEE
- Fieldbus Protocol:
- Modbus TCP, EtherNet/IP, PROFINET
- Signal type:
- Digital input, Digital input/output, Digital output
- Connection technology signal:
- M12
- Device type:
- I/O Module, Compact station, Field Logic Controller (ARGEE)
- Fieldbus transmission rate:
- 10/100 Mbps
- Fieldbus connection technology:
- 2 x M12, 4-pin, D-coded
- Ambient temperature:
- -40?à+70 ??C
- Protection class:
- IP65/IP67/IP69K
- Approvals:
- ATEX Zone 2/22, cULus, IECEx, CCC
