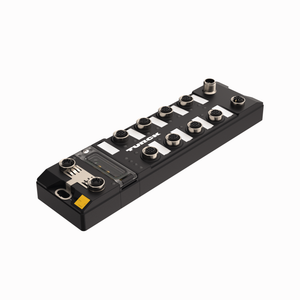

Turck TBEN-L4-8IOLA ID# 100028459
Turck
$885.00
Compact Multiprotocol I/O Module for Ethernet. 8 IO-Link Master Channels. 16 Universal Digital PNP Channels, Channel Diagnostics. Ident. no.: 100028459. PROFINET device, EtherNet/IP device or Modbus TCP server. Integrated Ethernet switch. Supports 10 Mbps/100 Mbps. 2 × M12, 4-pin, D-coded, Ethernet fieldbus connection. PROFINET S2 system redundancy. Glass fiber reinforced housing. Shock and vibration tested. Fully potted module electronics. Protection classes IP65, IP67, IP69K. 4-pin 7/8 male connector for power supply. ATEX Zone 2/22. 5-pin M12 slots for IO-Link master. IO-Link master port class A. IO-Link protocol 1.1. Programmable ARGEE
- Fieldbus Protocol:
- Modbus TCP, EtherNet/IP, PROFINET
- Signal type:
- IO-Link, Digital output, Digital input/output, Digital input
- Connection technology signal:
- M12
- Device type:
- I/O Module, Compact station, Field Logic Controller (ARGEE)
- Fieldbus transmission rate:
- 10/100 Mbps
- Fieldbus connection technology:
- 2 x M12, 4-pin, D-coded
- Ambient temperature:
- -40?à+70 ??C
- Protection class:
- IP65/IP67/IP69K
- Approvals:
- ATEX Zone 2/22, cULus, IECEx, CCC
- Manual:
- View
- Flyer:
- View
- Datasheet:
- View
