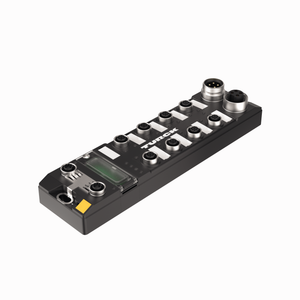

Turck Tben-Ll-8Iol Block-Io 100003910
Turck
$885.00
Compact multiprotocol I/O module for Ethernet. 8 IO-Link Master Channels. 4 Universal Digital PNP Channels, 2 A, Channel Diagnostics. Ident. no.: 100003910. PROFINET device, EtherNet/IP device, Modbus TCP server, CC-Link IE field basic. Integrated Ethernet switch. Supports 10 Mbps/100 Mbps. 2 × M12, 4-pin, D-coded, Ethernet fieldbus connection. PROFINET S2 system redundancy. Glass fiber reinforced housing. Shock and vibration tested. Fully potted module electronics. Protection classes IP65, IP67, IP69K. M12, 5-pin, L-coded male connector for power supply. Galvanically isolated voltage groups support passive safety. ATEX Zone 2/22. M12 ports for IO-Link master, 5-pin. IO-Link master port class A and port class B. IO-Link Protocol 1.1. Programmable ARGEE
- Fieldbus Protocol:
- Modbus TCP, EtherNet/IP, PROFINET, CC-Link IE Field Basic
- Signal type:
- IO-Link, Digital output, Digital input/output, Digital input
- Connection technology signal:
- M12
- Device type:
- I/O Module, Compact station, Field Logic Controller (ARGEE)
- Fieldbus transmission rate:
- 10/100 Mbps
- Fieldbus connection technology:
- 2 x M12, 4-pin, D-coded
- Ambient temperature:
- -40?à+70 ??C
- Protection class:
- IP65/IP67/IP69K
- Approvals:
- ATEX Zone 2/22, cULus, IECEx, CCC
- Manual:
- View
- Flyer:
- View
- Datasheet:
- View
