Manufacturer's Part Number: 100034306

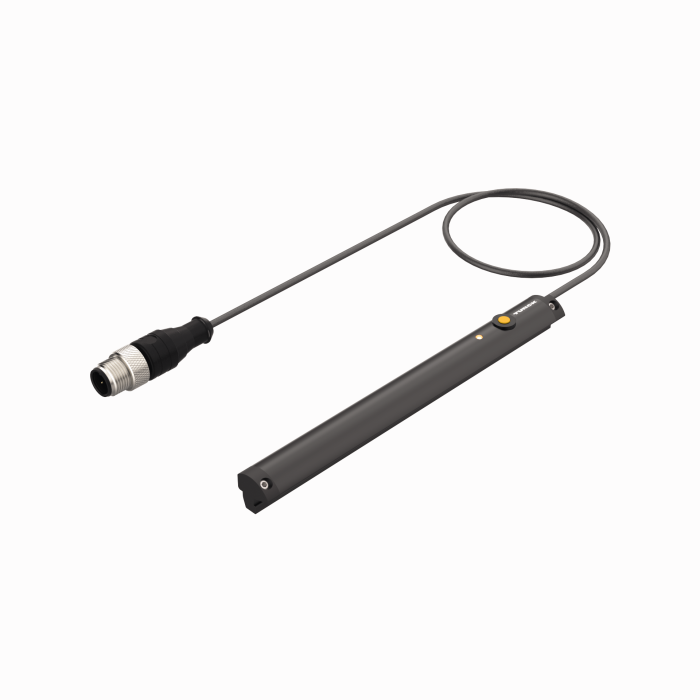

Magnetic Inductive Linear Position Sensor. For Analog Monitoring of Pneumatic Cylinders. Ident. no.: 100034306. Plastic, PA66 GF25. For direct mounting on pneumatic T-groove cylinders. Measuring range: 32 mm. 4-wire, 15
30 VDC. IO-Link 1.1. COM2. Teachable via IO-Link or button. Cable with M12 Ã 1 male connector
- Design:
- Rectangular
- Construction size:
- 45 x 13.6 x 14.2 mm, UNTL
- Cylindrical design:
- T-groove cylinder
- Operating voltage:
- 15?à30 VDC
- Communication protocol:
- IO-Link
- Electrical connection:
- Cable with connector, M12 ?ù 1
- Cable length (L):
- 0.30 m
- Housing material:
- Plastic, PA66-GF25
- Ambient temperature:
- -20?à+70 ??C
- Protection class:
- IP67
