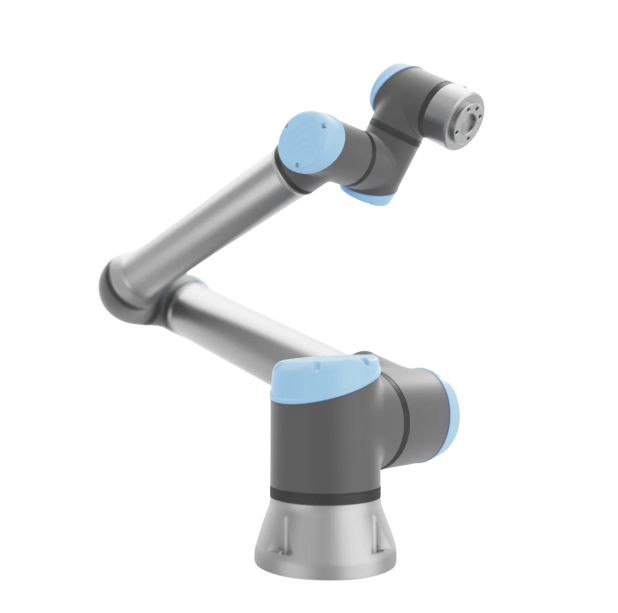

Universal Robots UR12e Collaborative Robot — PolyScope X, OEM DC Controller, No Teach Pendant
Universal RobotsSKU: 200882 | Universal Robots e-Series
PolyScope X | OEM DC Controller | No Teach Pendant NEW OEM DC Power
12.5 kg Payload 1300 mm Reach ±0.05 mm Repeatability 17 Safety Functions PolyScope X — Next-Gen Software OEM — No Teach Pendant DC Bus / Battery Power
⚠ No Teach Pendant Included — DC Power Input
- This SKU ships without a teach pendant and requires a DC power source (battery pack, DC bus, or DC power supply). It is not compatible with standard AC mains without a separate AC-to-DC converter.
- If you need AC mains power, see SKU 200881 (PolyScope X OEM AC).
- If you require a teach pendant, see SKU 200879 (Standard TP) or SKU 200880 (3PE TP).
Product Overview
The UR12e (SKU 200882) is the most specialized variant in the UR12e lineup — a DC-powered OEM configuration running Universal Robots' next-generation PolyScope X software on the CB5.6 controller, shipped without a teach pendant. It is purpose-built for system integrators and machine builders working with mobile platforms, battery-powered systems, and custom DC-bus power architectures where AC mains power is unavailable, impractical, or undesirable.
Think autonomous mobile robots (AMRs), automated guided vehicles (AGVs), portable inspection platforms, offshore or remote installations, and custom enclosures powered from centralized DC bus systems. The UR12e DC gives you the full collaborative robot motion platform — 12.5 kg payload, 1300 mm reach, PolyScope X's OptiMove and API capabilities — in a package that fits cleanly into DC-native power architectures without conversion losses or additional AC infrastructure.
Technical Specifications
| SKU / Part Number | 200882 |
| Robot Model | UR12e (e-Series) |
| Maximum Payload | 12.5 kg (27.5 lbs) |
| Reach | 1300 mm (51.2 in) |
| Repeatability | ±0.05 mm |
| Degrees of Freedom | 6 rotating joints |
| Robot Weight | 33.5 kg |
| Footprint (base diameter) | Ø 190 mm |
| IP Rating | IP54 |
| Operating Temperature | 0–50°C (32–122°F) |
| Max Power Consumption | 615 W |
| Typical Power Consumption | ~350 W (moderate settings) |
| Operating Noise | < 60 dB(A) |
| Software Platform | PolyScope X |
| Controller | CB5.6 OEM Control Box — DC power input |
| Power Input | DC bus / battery supply |
| Teach Pendant | Not included |
| Robot-to-Controller Cable | 6 m (standard) |
Connectivity & I/O
| Communication Protocols | Modbus TCP, PROFINET, Ethernet/IP, EtherCAT (via URCap), ROS |
| Digital Inputs / Outputs | 8 DI / 8 DO (controller) + 2 DI / 2 DO (tool flange) |
| Analog Inputs / Outputs | 2 AI / 2 AO (controller) + 2 AI (tool flange) |
| Tool Flange Power | 12 V / 24 V supply at tool connector |
| USB Ports | 2× USB-A (controller front panel) |
| Ethernet | 1000 Mb/s |
| Dashboard Server | TCP/IP interface for remote monitoring and control from onboard computer or fleet management system |
| URScript Interface | TCP/IP socket for programmatic robot control from external systems |
| RTDE | Real-Time Data Exchange for high-frequency data streaming to external controllers |
| 3rd-Party Expansion | URCaps plugin ecosystem |
OEM DC Controller: What It Means
DC Power Input
The CB5.6 OEM DC controller is powered directly from a DC source — a battery pack, a DC bus, or a regulated DC power supply — rather than AC mains. This eliminates the need for AC power infrastructure and avoids AC-to-DC conversion losses, improving overall system efficiency in battery-powered platforms where every watt matters.
No Teach Pendant
On mobile platforms, robot control is typically handled by an onboard computer, a fleet management system, or a remote operator interface — not a tethered pendant. If pendant access is needed for maintenance or commissioning, a Standard TP or 3PE TP can be connected to the CB5.6 controller separately.
OEM DC vs. OEM AC — Choosing the Right Power Configuration
- OEM DC (this SKU, 200882): DC bus or battery input. Choose this for AGVs, AMRs, mobile platforms, portable systems, offshore/remote installations, or any DC-native power architecture.
- OEM AC (SKU 200881): Standard AC mains input. Choose this for fixed factory installations, production lines, and stationary cells with standard wall or panel power.
- If you are unsure which power configuration your system requires, consult your electrical engineer or system architect before ordering.
Software: PolyScope X NEW
This SKU ships with PolyScope X on the CB5.6 controller — Universal Robots' next-generation platform introduced in 2025. For mobile and OEM deployments, PolyScope X's API-first architecture and offline programming capability are particularly valuable.
Key PolyScope X Features for Mobile & OEM Deployments
OptiMoveAdvanced motion control for smoother paths and reduced vibration — critical on mobile platforms where base movement and robot motion must coordinate cleanly.
Offline ProgrammingDevelop and validate programs in a lab or office before deploying to the mobile platform. No robot connection needed during development.
URScript & RTDEFull programmatic control via TCP/IP for integration with onboard computers, ROS navigation stacks, and fleet management software.
Dashboard ServerRemote program loading, robot state monitoring, and control from a fleet management system without a physical pendant on the platform.
Application VariablesPersistent variables across program runs — useful for stateful task execution coordinated with an AMR's navigation and mission planning system.
Modules & FunctionsReusable program templates for standardized task execution across a fleet of identical mobile manipulation platforms.
World-Centric FramesReduces re-teaching when the mobile base docks at different stations with slight positional variation.
ROS IntegrationCompatible with ROS-based navigation and manipulation stacks via Ethernet/IP and RTDE — a natural fit for research and advanced mobile robotics platforms.
Safety
| Safety Standard | EN ISO 13849-1, PLd Category 3 |
| Collaborative Standard | ISO/TS 15066, ISO 10218-1 |
| Configurable Safety Functions | 17 (joint positions, speeds, forces, power, momentum, stopping time/distance) |
| Force/Torque Sensing | Yes — all 6 joints monitored for collision detection |
| External E-Stop Input | Yes — hardwired e-stop input on controller terminal block |
| Safeguard Input | Yes — external safeguard stop input for integration with safety PLCs and area scanners |
| Safety Password | Password-protected safety configuration |
| Operating Noise | < 60 dB(A) |
Typical Applications
SKU 200882 is the go-to variant for mobile manipulation and off-grid automation. Typical deployment scenarios include:
AMR / AGV IntegrationMounted on autonomous mobile robots or guided vehicles for mobile manipulation — picking, placing, kitting, or inspection on the move.
Mobile Machine TendingA mobile UR12e that travels between CNC machines to tend multiple stations — powered from the vehicle's onboard battery.
Portable Inspection PlatformsBattery-powered inspection carts that deploy the robot at various stations without requiring AC outlet access.
DC Bus Machine BuildsCustom OEM machines with centralized DC bus power architectures where all actuators and drives share a common DC supply.
Remote & Off-Grid InstallationsDeployments where AC mains is unavailable — powered from solar, generator DC output, or battery backup systems.
Research & Advanced RoboticsUniversity and R&D platforms building mobile manipulation systems with ROS integration and DC power as standard requirements.
Who Is This SKU For?
200882 — Ideal Customer Profile
- AMR and AGV integrators mounting a collaborative robot arm on a mobile base powered by onboard batteries or a vehicle DC bus.
- Mobile platform builders who need the full UR12e payload and reach capability in a DC-native power architecture.
- OEM machine builders designing systems with a centralized DC bus where running AC mains to the robot controller is impractical.
- Integrators deploying in remote, off-grid, or portable environments where AC mains power is not available at the point of use.
- Research institutions and advanced robotics labs building mobile manipulation platforms with ROS integration and DC power systems.
- Anyone who needs the most deployment-flexible OEM UR12e variant — untethered from fixed AC infrastructure, fully programmable via API, running PolyScope X.
UR12e OEM Variant Comparison
Here's how all four OEM variants compare — and how 200882 fits as the most specialized configuration:
| Feature | 200882 — This SKU | 200881 — PSX OEM AC | 200878 — PS5 OEM DC |
|---|---|---|---|
| Software Platform | PolyScope X | PolyScope X | PolyScope 5 |
| Controller | CB5.6 OEM | CB5.6 OEM | CB5.5 OEM |
| Power Input | DC bus / battery | AC mains | DC bus / battery |
| Teach Pendant | Not included | Not included | Not included |
| OptiMove | Yes | Yes | No |
| Offline Programming | Yes | Yes | No |
| ROS Compatibility | Yes | Yes | Yes |
| Best For | Mobile platforms, DC-bus, off-grid | Fixed AC installations | Mobile platforms, existing PS5 |
What's in the Box
| Robot Arm | UR12e 6-axis collaborative robot arm |
| Controller | CB5.6 OEM Control Box — DC power input |
| Teach Pendant | Not included |
| Robot Cable | 6 m robot-to-controller cable |
| Mounting Hardware | Base mounting flange and hardware |
| Tool Flange | ISO 9409-1-50-4-M6 compatible |
| Documentation | Quick Start Guide, Safety Manual, PolyScope X User Manual (digital) |
| Software | PolyScope X (pre-installed on CB5.6 controller) |
Resources & Downloads
- → UR12e Datasheet (PDF)
- → PolyScope X User Manual
- → UR12e User Manual
- → UR12e CAD / STEP File
- → Safety Functions Table — included in User Manual
- → UR Academy (Free Training)
- → URCap Marketplace
- → UR Care Services — 24/7 support, remote connectivity, on-site field service
- Payload:
- 12.5 kg
- Reach:
- 1300 mm
- Repeatability:
- ±0.05 mm
- Degrees of Freedom:
- 6
- Robot Weight:
- 33.5 kg
- Footprint:
- Ø190 mm
- IP Rating:
- IP54
- Max Power:
- 615 W
- Typical Power:
- 350 W
- Safety Functions:
- 17
- Safety Standard:
- EN ISO 13849-1 PLd Cat.3
- Operating Temp:
- 0-50°C
