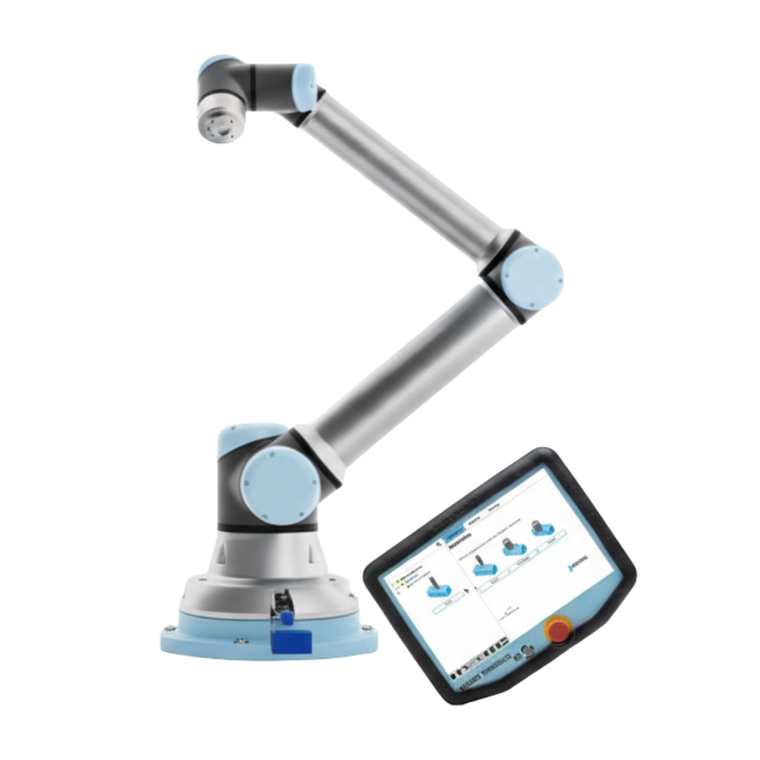

Universal Robots UR7e Force-Guided Cobot Kit with Pendant Protection
Universal Robots
$54,750.00
UR7e Force-Ready Automation Kit
Deploy Precision, Force-Controlled Automation—Right Out of the Box
This all-in-one kit combines Universal Robots' next-generation UR7e cobot, Robotiq's Force Copilot software, and industrial-grade teach pendant protection into a single, easy-to-deploy package built for assembly, insertion, finishing, and machine tending applications.
Force-Controlled Precision
The UR7e features an embedded force-torque sensor with 4 N accuracy. Paired with Robotiq Force Copilot, you gain access to pre-built nodes for insertion, surface finding, force control, collision detection, and multipoint paths—all programmable without robotics expertise.
Shop-Floor-Ready Pendant Protection
The Santoprene bumper absorbs impact energy if your teach pendant is dropped or knocked, while the tempered glass overlay shields the 12" capacitive touchscreen from oils, coolants, and abrasion. Replace a cracked protector—not the entire pendant.
Fast Deployment
The UR7e runs PolyScope 5 or PolyScope X on its 12" touchscreen, and Force Copilot installs via USB dongle for instant compatibility. Typical deployments are measured in hours, not weeks.
Specifications at a Glance
| Specification | Value |
|---|---|
| Payload | 7.5 kg (16.5 lb) |
| Reach | 850 mm (33.5 in) |
| Repeatability | ±0.03 mm |
| Degrees of Freedom | 6 rotating joints |
| Force Sensor Accuracy | 4 N |
| Joint Speed | Up to 180°/s |
| Tool Speed | ~1 m/s |
| Power Consumption | 250 W typical / 570 W max |
| IP Rating | IP54 |
| Safety Certification | PLd Cat 3 per EN ISO 13849-1, 17 configurable safety functions |
| Communication | Modbus TCP, EtherNet/IP, PROFINET, USB 2.0/3.0 |
Ideal Applications
-
Part insertion & press-fit assembly – Force Copilot's Insertion node handles tight tolerances with click detection
-
Surface finding & finishing – Polishing, deburring, and grinding with real-time force feedback
-
Machine tending – Reliable load/unload cycles with collision detection to protect tooling
-
Path recording & hand-guiding – Use ActiveDrive to teach complex trajectories by physically guiding the arm
What's in the Box
-
UR7e robot arm (20.7 kg) with control box (460 × 449 × 254 mm)
-
12" teach pendant with 4.5 m cable
-
Standard 6 m PVC robot cable
-
Robotiq Force Copilot USB license dongle, stylus, and wrist sticker
-
Pendant Bumper (Santoprene, e-Series compatible)
-
Tempered Glass Screen Protector (e-Series 12" touchscreen)
Why Automation Distribution?
We help you design, build, and support high-performance automation cells with Universal Robots, Robotiq, SMC, WAGO, Turck, and more. From pre-sales engineering to post-install support, we're your single source for cobot solutions.
Questions? Call us at 1-888-600-3080 or message our automation specialists.
