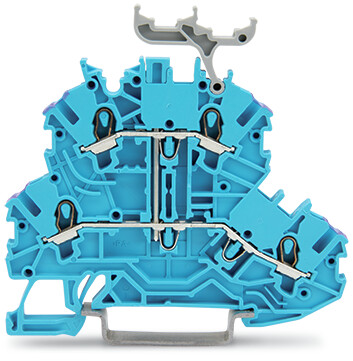

TOPJOBS double-deck terminal block;internally commoned; rail mount; 4-conductor; 3.5 mm wide; blue.
The WAGO 2000 TOPJOB S series neutral-through terminal block is a double-deck terminal block with internal commoning and side/lateral and center marking slots, suitable for Ex e II / Ex I applications. It features a blue "N" marking and accommodates two push-in connections per deck, supporting wire sizes from 0.14mm² to 1.5mm² (#24AWG to #16AWG) with a nominal cross-section of 1mm². The terminal block is rated for currents of 13.5A and 16A and uses Push-in CAGE CLAMP spring connections. It is designed for mounting on a DIN-35 rail (35 x 15 / 35 x 7.5) with a width of 3.5mm, equivalent to model 20002209.
- actuation type:
- Push-in || Operating tool
- approvals per:
- UL 1059
- color:
- Blue
- connectable conductor materials:
- Copper
- connection technology:
- Push-in CAGE CLAMP«
- country of origin sales organisation germany:
- CN
- depth from upper edge of din rail:
- 51.7 mm / 2.035 inch
- design:
- Horizontal type
- fine stranded conductor:
- 0.14 ª 1.5 mm / 24 ª 16 AWG
- fine stranded conductor with ferrule push in termination:
- 0.5 ª 0.75 mm / 20 ª 18 AWG
- fine stranded conductor with insulated ferrule:
- 0.14 ª 0.75 mm / 24 ª 18 AWG
- fire load:
- 0.155 MJ
- flammability class per ul94:
- V0
- height:
- 69.7 mm / 2.744 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 3) « Overvoltage category III / Pollution degree 3
- marking level:
- Center/side marking
- mounting type:
- DIN-35 rail
- nominal cross section:
- 1 mm
- nominal voltage iii 3:
- 500 V
- note conductor cross section:
- Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
- packaging type:
- Box
- rated current:
- 13.5 A
- rated current 2:
- 16 A
- rated current csa use group b:
- 0.416666666666667
- rated current csa use group c:
- 0.416666666666667
- rated current ex e ii:
- 13 A
- rated current ex e ii with jumper:
- 0
- rated current ul use group b:
- 15 A
- rated current ul use group c:
- 15 A
- rated surge voltage iii 3:
- 6 kV
- rated voltage csa use group b:
- 600 V
- rated voltage csa use group c:
- 600 V
- rated voltage en ex e ii:
- 350 V
- rated voltage ul use group b:
- 300 V
- rated voltage ul use group c:
- 300 V
- ratings per:
- IEC/EN 60947-7-1
- solid conductor:
- 0.14 ª 1.5 mm / 24 ª 16 AWG
- solid conductor push in termination:
- 0.5 ª 1.5 mm / 20 ª 16 AWG
- strip length:
- 9 ª 11 mm / 0.35 ª 0.43 inch
- weight:
- 7.659 g
- width:
- 3.5 mm / 0.138 inch
- wiring direction:
- Front-entry wiring
