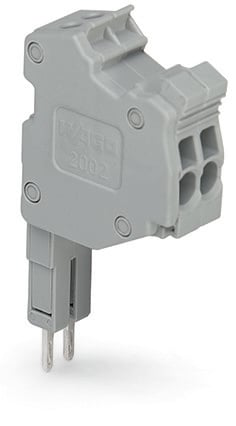

TOPJOBS connector strip; for 2000 series; for jumper contact slot; 6-pole; gray.
The WAGO 2000 TOPJOB S series modular connector is a 6-pole (6P) component designed for wire sizes ranging from 0.14mm² to 1.5mm² or #24AWG to #16AWG, with a rated current of 13.5A. It features Push-in CAGE CLAMP spring connections for secure and easy wiring and is gray in color. This connector is suitable for plug-in mounting and is equivalent to the model number 2000556.
- actuation type:
- Operating tool
- approvals per:
- C22.2 No 158
- color:
- Gray
- connectable conductor materials:
- Copper
- connection technology:
- Push-in CAGE CLAMP«
- country of origin sales organisation germany:
- DE
- fine stranded conductor:
- 0.14 ª 1.5 mm / 24 ª 16 AWG
- fine stranded conductor with ferrule push in termination:
- 0.5 ª 0.75 mm / 20 ª 18 AWG
- fine stranded conductor with insulated ferrule:
- 0.14 ª 0.75 mm / 24 ª 18 AWG
- fire load:
- 0.026 MJ
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 3) « Overvoltage category III / Pollution degree 3
- marking level:
- Center/side marking
- module width:
- 3.5 mm / 0.138 inch
- nominal cross section:
- 1 mm
- nominal voltage iii 3:
- 500 V
- note conductor cross section:
- Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
- packaging type:
- Box
- pole no:
- 6
- rated current:
- 13.5 A
- rated current csa use group b:
- 0.416666666666667
- rated current csa use group c:
- 0.416666666666667
- rated current ul use group b:
- 0.416666666666667
- rated current ul use group c:
- 0.416666666666667
- rated surge voltage iii 3:
- 6 kV
- rated voltage csa use group b:
- 300 V
- rated voltage csa use group c:
- 300 V
- rated voltage ul use group b:
- 300 V
- rated voltage ul use group c:
- 300 V
- safety information 1:
- According to EN 61984, pluggable connectors without current interrupting capacity must not be mated or unmated when live or under load.
- solid conductor:
- 0.14 ª 1.5 mm / 24 ª 16 AWG
- solid conductor push in termination:
- 0.5 ª 1.5 mm / 20 ª 16 AWG
- strip length:
- 9 ª 11 mm / 0.35 ª 0.43 inch
- weight:
- 11.750 g
- width:
- 22.5 mm / 0.885 inch
- wiring direction:
- Side-entry wiring
