Description
Electrical Data
- Rated voltage (III / 3): 800 V
- Rated impulse voltage (III / 3): 8 kV
- Rated current: 18 A
- Rated current (2): 24 A
- Legend (ratings): (III / 3) Overvoltage category III / Pollution degree 3
- Rated voltage UL (Use Group B): 600 V
- Rated current UL (Use Group B): 15 A
- Rated voltage UL (Use Group C): 600 V
- Rated current UL (Use Group C): 15 A
- Rated voltage CSA (Use Group B): 600 V
- Rated current CSA (Use Group B): 15 A
- Rated voltage CSA (Use Group C): 600 V
- Rated current CSA (Use Group C): 15 A
- Rated voltage EN (Ex e II): 550 V
- Rated current (Ex e II): 17 A
- Rated current (Ex e II) with jumper: 16 A
Connection Data
- Connection technology: Push-in CAGE CLAMP<sup></sup>
- Actuation type: Operating tool
- Connectable conductor materials: Copper
- Nominal cross section: 1.5 mm
- Solid conductor: 0.25 2.5 mm / 22 14 AWG
- Solid conductor, push-in termination: 0.75 2.5 mm / 18 14 AWG
- Fine-stranded conductor: 0.25 2.5 mm / 22 14 AWG
- Fine-stranded conductor with ferrule with plastic collar: 0.75 1.5 mm / 18 16 AWG
- Fine-stranded conductor with ferrule, push-in termination, from: 0.75 1.5 mm / 18 16 AWG
- Strip length: 9 11 mm / 0.35 0.43 inch
- Total number of connection points: 2
- Total number of potentials: 1
- Number of levels: 1
- Type of wiring: Front-entry wiring
- Note (conductor cross-section): Depending on the conductor characteristic, a conductor with a smaller cross section can also be inserted via push-in termination.
- Number of jumper slots: 2
Geometrical Data
- Width: 4.2 mm / 0.165 inch
- Height from upper-edge of DIN-35 rail: 32.9 mm / 1.295 inch
- Depth: 48.5 mm / 1.909 inch
Mechanical Data
- Design: horizontal
- Type of mounting: DIN-35 rail
- Marking level: Center/side marking
Material Data
- Color: blue
- Insulating material: Polyamide 66 (PA 66)
- Fire load: 0.074 MJ
- Weight: 4.370 g
Commercial data
- Packaging type: BOX
- Country of origin: DE
- GTIN: 4017332997294
- Customs Tariff No.: 85369010000

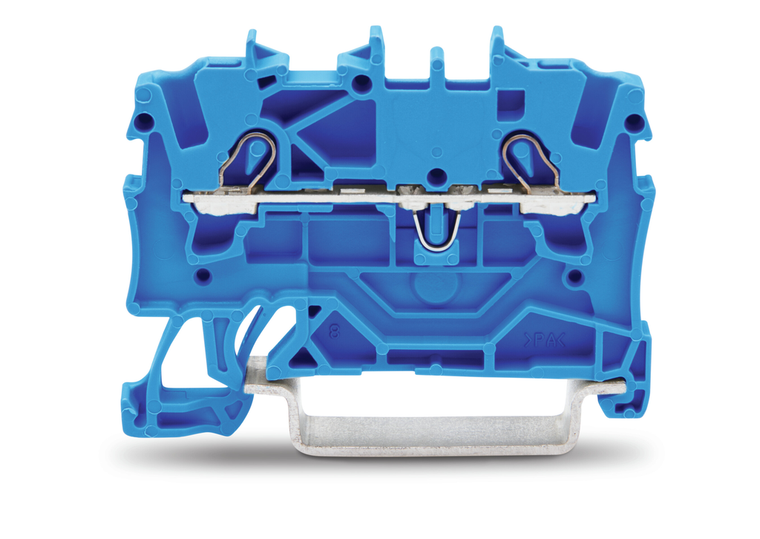

The WAGO 2001 TOPJOB S series neutral-through terminal block is a blue, single-deck component with side and center marking slots, suitable for Ex e II / Ex I applications. It features a neutral-through pole (N) with two push-in wire connections, supporting a nominal cross-section of 1.5mm² and accommodating wire sizes from 0.25mm² to 2.5mm² or #22AWG to #14AWG. The terminal block is rated for currents of 18A and 24A and utilizes Push-in CAGE CLAMP spring connections. It is designed for mounting on a DIN-35 rail (35 x 15 / 35 x 7.5) with a width of 4.2mm, equivalent to model 20011204.
