Wago

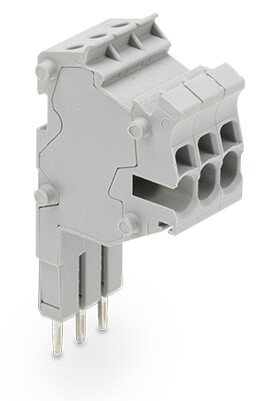

WAGO 2001-552

SKU:

2001-552

UPC:

MPN:

2001-552

Condition:

New

actuation type:

Operating tool

color:

Gray

connection technology:

Push-in CAGE CLAMP

country of origin sales organisation germany:

DE

fine stranded conductor:

0.25 2.5 mm / 22 14 AWG

fine stranded conductor with ferrule push in termination:

0.75 1.5 mm / 18 16 AWG

fine stranded conductor with insulated ferrule:

0.25 1.5 mm / 22 16 AWG

fire load:

0.140 MJ

insulation material:

Polyamide (PA66)

legend ratings:

(III / 3) Overvoltage category III / Pollution degree 3

marking level:

Center/side marking

module width:

4.2 mm / 0.165 inch

nominal cross section:

1.5 mm

nominal voltage iii 3:

500 V

note conductor cross section:

Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.

packaging type:

Box

pole no:

2

rated current:

18 A

rated surge voltage iii 3:

6 kV

safety information 1:

According to EN 61984, pluggable connectors without current interrupting capacity must not be mated or unmated when live or under load.

solid conductor:

0.25 2.5 mm / 22 14 AWG

solid conductor push in termination:

0.75 2.5 mm / 18 14 AWG

strip length:

9 11 mm / 0.35 0.43 inch

weight:

4.400 g

width:

8.4 mm / 0.331 inch

wiring direction:

Side-entry wiring
