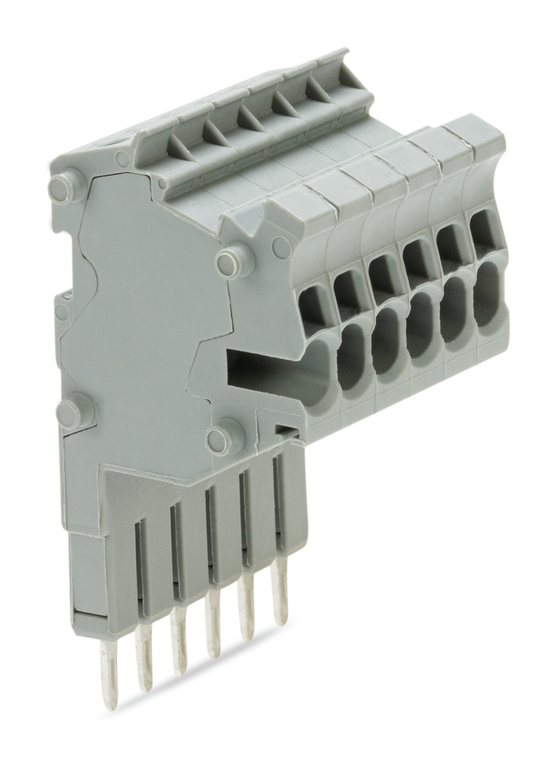

WAGO 2001-556
- SKU:
- 2001-556
- Condition:
- New
- actuation type:
- Operating tool
- color:
- Gray
- connection technology:
- Push-in CAGE CLAMP
- country of origin sales organisation germany:
- DE
- fine stranded conductor:
- 0.25 2.5 mm / 22 14 AWG
- fine stranded conductor with ferrule push in termination:
- 0.75 1.5 mm / 18 16 AWG
- fine stranded conductor with insulated ferrule:
- 0.25 1.5 mm / 22 16 AWG
- fire load:
- 0.420 MJ
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 3) Overvoltage category III / Pollution degree 3
- marking level:
- Center/side marking
- module width:
- 4.2 mm / 0.165 inch
- nominal cross section:
- 1.5 mm
- nominal voltage iii 3:
- 500 V
- note conductor cross section:
- Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
- packaging type:
- Box
- pole no:
- 6
- rated current:
- 18 A
- rated surge voltage iii 3:
- 6 kV
- safety information 1:
- According to EN 61984, pluggable connectors without current interrupting capacity must not be mated or unmated when live or under load.
- solid conductor:
- 0.25 2.5 mm / 22 14 AWG
- solid conductor push in termination:
- 0.75 2.5 mm / 18 14 AWG
- strip length:
- 9 11 mm / 0.35 0.43 inch
- weight:
- 12.912 g
- width:
- 25.2 mm / 0.992 inch
- wiring direction:
- Side-entry wiring
Description
TOPJOB S connector strip; for 2001 series; for jumper contact slot; 6-pole; gray
