Wago 2002-1321/1000-413

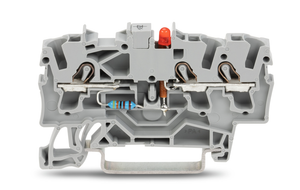

WAGO 2002-1321/1000-413 Component terminal block; 3-conductor; LED (red); 24 VDC; for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm²; Push-in CAGE CLAMP; 2,50 mm²; gray

Wago
SKU:
51190186
$12.95
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
Description 3-conductor LED terminal block; with red LED; 24 VDC
Remarks

Safety information 1: Notice: This LED terminal block cannot be commoned with push-in type jumper bars!



Item properties

Miscellaneous

Name Value Unit
Total number of connection points  3
Total number of potentials  1
Color  gray
Ratings per  IEC/EN 60947-7-1
Rated current [A]  0.025  A
Nominal voltage [V]  24  V
Number of levels  1
Connection technology  Push-in CAGE CLAMP
Number of connection points connector  3
Actuation type  Operating tool
Connectable conductor materials  Copper
Nominal cross section  2.5 mm nbsp;
Solid conductor  0.25 4 mm / 22 12 AWG
Solid conductor, push-in termination  0.75 4 mm / 18 12 AWG
Fine-stranded conductor  0.25 4 mm / 22 12 AWG
Fine-stranded conductor with ferrule, push-in termination fr  0.75 mm / 18 AWG
Strip length  10 12 mm / 0.39 0.47 Inch
Type of wiring  Front-entry wiring
Design  horizontal
Marking level  Center/side marking
Insulating material  Polyamide 66 (PA 66)
Fire load [MJ]  0.114  MJ
Weight [g]  6.2  g
Width  5.2 mm / 0.205 Inch
Height from upper-edge of DIN-35 rail  32.9 mm / 1.295 Inch
Depth  59.2 mm / 2.33 Inch
Type of mounting  DIN-35 x 15 carrier rail
.

The WAGO 2002 TOPJOB S series component feed-through terminal block is a gray, single-deck unit featuring a red LED indicator (24Vdc, anode on the left side) and slots for side and center marking. It has one disconnect feed-through pole (1P) and accommodates three wires (one push-in and two push-in) with a nominal cross-section of 2.5mm², suitable for wire sizes ranging from 0.25mm² to 4mm² or #22AWG to #12AWG. The terminal block supports a rated current of 0.025A and utilizes Push-in CAGE CLAMP spring connections. It is designed for mounting on a DIN-35 rail (35 x 15 / 35 x 7.5) and has a width of 5.2mm, equivalent to model number 200213211000413.

Additional Information
actuation type:
Push-in || Operating tool
color:
Gray
connectable conductor materials:
Copper
connection technology:
Push-in CAGE CLAMP
country of origin sales organisation germany:
DE
depth from upper edge of din rail:
32.9 mm / 1.295 inch
design:
Horizontal type
fine stranded conductor:
0.25 4 mm / 22 12 AWG
fine stranded conductor with ferrule push in termination:
1 2.5 mm / 18 14 AWG
fine stranded conductor with insulated ferrule:
0.25 2.5 mm / 22 14 AWG
fire load:
0.140 MJ
flammability class per ul94:
V0
height:
59.2 mm / 2.33 inch
insulation material:
Polyamide (PA66)
marking level:
Center/side marking
mounting type:
DIN-35 rail
nominal cross section:
2.5 mm
note conductor cross section:
Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
packaging type:
Box
rated current:
0.025 A
ratings per:
IEC/EN 60947-7-1
safety information 1:
Notice: This LED terminal block cannot be commoned with push-in type jumper bars.
solid conductor:
0.25 4 mm / 22 12 AWG
solid conductor push in termination:
0.75 4 mm / 18 12 AWG
strip length:
10 12 mm / 0.39 0.47 inch
weight:
6.200 g
width:
5.2 mm / 0.205 inch
wiring direction:
Front-entry wiring
