Wago 2002-1494 Pack of 25

WAGO 2002-1494 Pack of 25

Wago
SKU:
2002-1494
Availability:
In our warehouse: 50
$28.50
Condition:
New
Current Stock:
Description

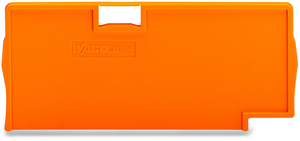

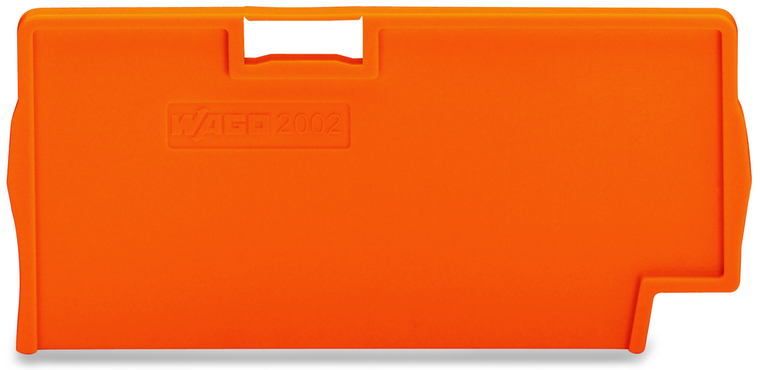

Description Separator plate; 2 mm thick; oversized
Remarks

Item properties

Miscellaneous

Name Value Unit
Color  orange
Fire load [MJ]  0.073  MJ
Weight [g]  2.43  g
Width  2 mm / 0.079 Inch
Height  33.4 mm / 1.315 Inch
Depth  69.45 mm / 2.734 Inch
.

The oversized separator/partition/barrier plate from WAGO's 2002 TOPJOB S series is an orange-colored component with a width of 2mm, equivalent to the model number 20021494.

Additional Information
actuation type:
Operating tool
color:
Gray
connectable conductor materials:
Copper
connection technology:
CAGE CLAMP
country of origin sales organisation germany:
DE
depth from upper edge of din rail:
52.5 mm / 2.067 inch
design:
Horizontal type
fine stranded conductor:
0.08 4 mm / 28 12 AWG
fine stranded conductor with insulated ferrule:
0.08 1.5 mm / 28 14 AWG
fire load:
0.278 MJ
flammability class per ul94:
V0
height:
106 mm / 4.173 inch
legend ratings:
(III / 3) Overvoltage category III / Pollution degree 3
marking level:
Side marking
mounting type:
DIN-35 rail
nominal voltage iii 3:
500 V
packaging type:
Box
rated current:
24 A
rated surge voltage iii 3:
6 kV
ratings per:
IEC/EN 60947-7-1
safety information 1:
Max. insulation diameter: 4.4 mm
solid conductor:
0.08 2.5 mm / 28 12 AWG
strip length:
6 7 mm / 0.24 0.28 inch
weight:
17.352 g
width:
5 mm / 0.197 inch
wiring direction:
Front-entry wiring
