Wago

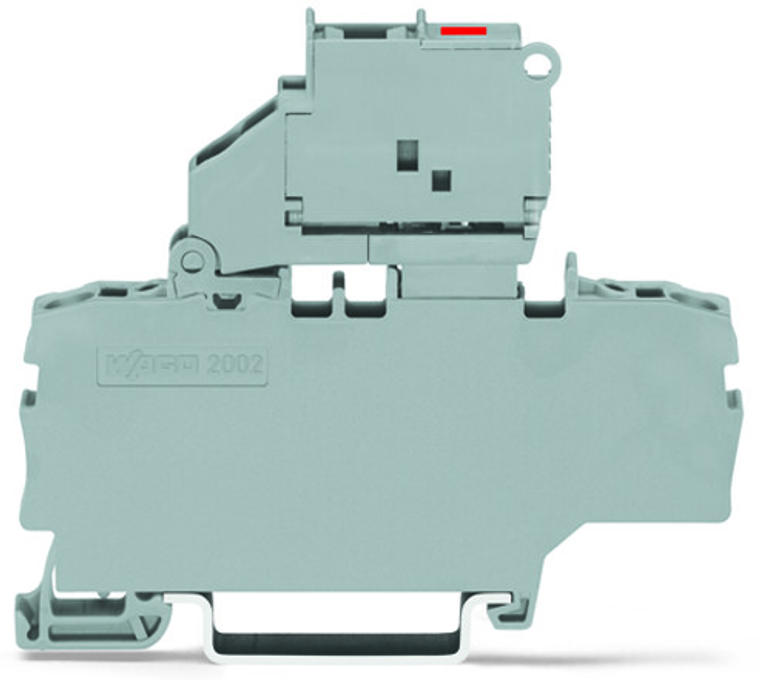

WAGO 2002-1911/1000-542

SKU:

2002-1911/1000-542

UPC:

MPN:

2002-1911/1000-542

Condition:

New

actuation type:

Push-in || Operating tool

approvals per:

UL 1059

type of fuse:

Cylindrical fuse 5 x 20 mm

color:

Gray

connectable conductor materials:

Copper

connection technology:

Push-in CAGE CLAMP«

country of origin sales organisation germany:

DE

depth from upper edge of din rail:

57.6 mm / 2.268 inch

design:

Horizontal type

fine stranded conductor:

0.25 ƒƒ‡ª 4 mm / 22 ƒƒ‡ª 12 AWG

fine stranded conductor with ferrule push in termination:

1 ƒƒ‡ª 2.5 mm / 18 ƒƒ‡ª 14 AWG

fine stranded conductor with insulated ferrule:

0.25 ƒƒ‡ª 2.5 mm / 22 ƒƒ‡ª 14 AWG

fire load:

0.173 MJ

flammability class per ul94:

V0

height:

72.9 mm / 2.87 inch

insulation material:

Polyamide (PA66)

legend ratings:

(III / 3) ƒƒ«ƒƒ– Overvoltage category III / Pollution degree 3

marking level:

Center/side marking

mounting type:

DIN-35 rail

nominal cross section:

2.5 mm

nominal voltage iii 3:

250 V

note conductor cross section:

Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.

note on rated current 1:

Leakage current in case of a blown fuse: LED 2 mA

operation status indicator:

30 ƒƒ‡ª 65 V

packaging type:

Box

rated current:

6.3 A

rated current ex e ii:

6.3 A

rated current ul use group b:

6.3 A

rated current ul use group c:

6.3 A

rated current ul use group d:

6.3 A

rated surge voltage iii 3:

6 kV

rated voltage en ex e ii:

48 V

rated voltage ul use group b:

65 V

rated voltage ul use group c:

65 V

rated voltage ul use group d:

65 V

ratings note:

Electrical ratings are given by the fuse and blown fuse indication.

ratings per:

ATEX: KIWA 17 ATEX 0030 U / IECEx: KIWA 17.0014U (Ex ec IIC Gc)

solid conductor:

0.25 ƒƒ‡ª 4 mm / 22 ƒƒ‡ª 12 AWG

solid conductor push in termination:

0.75 ƒƒ‡ª 4 mm / 18 ƒƒ‡ª 12 AWG

strip length:

10 ƒƒ‡ª 12 mm / 0.39 ƒƒ‡ª 0.47 inch

weight:

14.600 g

width:

6.2 mm / 0.244 inch

wiring direction:

Front-entry wiring
