Wago

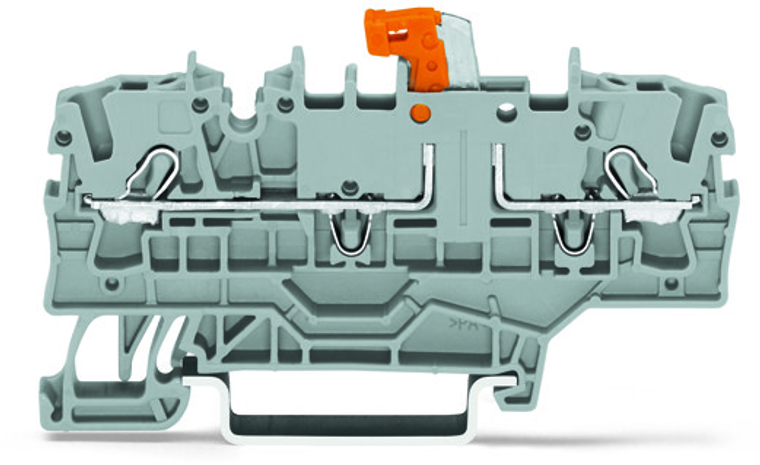

WAGO 2002-1971

SKU:

2002-1971

UPC:

MPN:

2002-1971

Condition:

New

actuation type:

Push-in || Operating tool

approvals per:

C22.2 No 158

color:

Gray

connectable conductor materials:

Copper

connection technology:

Push-in CAGE CLAMP

country of origin sales organisation germany:

CN

depth from upper edge of din rail:

32.9 mm / 1.295 inch

design:

Horizontal type

fine stranded conductor:

0.25 4 mm / 22 12 AWG

fine stranded conductor with ferrule push in termination:

1 2.5 mm / 18 14 AWG

fine stranded conductor with insulated ferrule:

0.25 2.5 mm / 22 14 AWG

fire load:

0.168 MJ

flammability class per ul94:

V0

height:

72.9 mm / 2.87 inch

insulation material:

Polyamide (PA66)

legend ratings:

(III / 3) Overvoltage category III / Pollution degree 3

marking level:

Center/side marking

mounting type:

DIN-35 rail

nominal cross section:

2.5 mm

nominal voltage iii 3:

400 V

note conductor cross section:

Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.

packaging type:

Box

rated current:

16 A

rated current csa use group b:

0.416666666666667

rated current csa use group c:

0.416666666666667

rated current ex e ii:

17 A

rated current ul use group b:

15 A

rated current ul use group c:

15 A

rated surge voltage iii 3:

6 kV

rated voltage csa use group b:

600 V

rated voltage csa use group c:

600 V

rated voltage en ex e ii:

440 V

rated voltage ul use group b:

300 V

rated voltage ul use group c:

300 V

ratings per:

IEC/EN 60947-7-1

solid conductor:

0.25 4 mm / 22 12 AWG

solid conductor push in termination:

0.75 4 mm / 18 12 AWG

strip length:

10 12 mm / 0.39 0.47 inch

weight:

8.297 g

width:

5.2 mm / 0.205 inch

wiring direction:

Front-entry wiring
