Wago

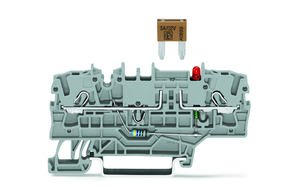

WAGO 2002-1981/1000-449

SKU:

2002-1981/1000-449

UPC:

MPN:

2002-1981/1000-449

Condition:

New

actuation type:

Push-in || Operating tool

approvals per:

UL 1059

type of fuse:

Mini plug-in fuse 10.9 x 3.6 x 16.3 mm

color:

Gray

connectable conductor materials:

Copper

connection technology:

Push-in CAGE CLAMP

country of origin sales organisation germany:

CN

depth from upper edge of din rail:

32.9 mm / 1.295 inch

design:

Horizontal type

fine stranded conductor:

0.25 4 mm / 22 12 AWG

fine stranded conductor with ferrule push in termination:

1 2.5 mm / 18 14 AWG

fine stranded conductor with insulated ferrule:

0.25 2.5 mm / 22 14 AWG

fire load:

0.177 MJ

flammability class per ul94:

V0

height:

72.9 mm / 2.87 inch

insulation material:

Polyamide (PA66)

legend ratings:

(III / 3) Overvoltage category III / Pollution degree 3

marking level:

Center/side marking

mounting type:

DIN-35 rail

nominal cross section:

2.5 mm

nominal voltage iii 3:

400 V

note conductor cross section:

Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.

operation status indicator:

12 V

packaging type:

Box

rated current:

0.416666666666667

rated current ul use group b:

0.416666666666667

rated current ul use group c:

0.416666666666667

rated surge voltage iii 3:

6 kV

rated voltage ul use group b:

12 V

rated voltage ul use group c:

12 V

ratings note:

Electrical ratings are given by the fuse and blown fuse indication.

ratings note 2:

Blade-style fuses: Observe touch-proof protection for 42 V and higher voltages!10 A (individual arrangement)5 A (block arrangement)

ratings per:

IEC/EN 60947-7-3

solid conductor:

0.25 4 mm / 22 12 AWG

solid conductor push in termination:

0.75 4 mm / 18 12 AWG

strip length:

10 12 mm / 0.39 0.47 inch

weight:

8.150 g

width:

5.2 mm / 0.205 inch

wiring direction:

Front-entry wiring
