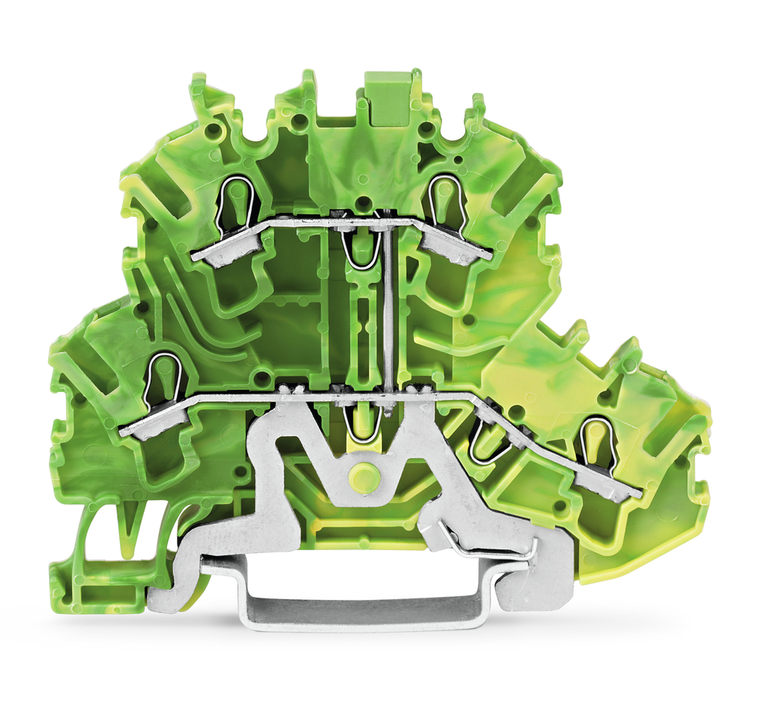

WAGO 2002-2207 Double-Deck Ground Terminal Block, 4-Conductor, 2.5mm², Green-Yellow
Wago
$11.23
TOPJOBS double-deck ground terminal block; internally commoned; rail mount; 4-conductor; 5.2 mm wide; green-yellow.
The WAGO 2002 TOPJOB S series ground/earthing terminal block is a double-deck terminal block with internal commoning, side and center marking slots, and is suitable for Ex e II applications. It features a green-yellow "PE" marking and accommodates 2 x 2 wires with push-in CAGE CLAMP spring connections, supporting a nominal cross-section of 2.5mm² and wire sizes ranging from 0.25mm² to 4mm² or #22AWG to #12AWG. The terminal block is designed for mounting on a DIN-35 rail and has a width of 5.2mm, equivalent to model 20022207.
- actuation type:
- Operating tool
- color:
- Gray
- connectable conductor materials:
- Copper
- connection technology:
- CAGE CLAMP
- country of origin sales organisation germany:
- DE
- depth:
- 25 mm / 0.984 inch
- design:
- Horizontal type
- fine stranded conductor:
- 0.08 1.5 mm / 28 16 AWG
- fire load:
- 0.111 MJ
- flammability class per ul94:
- V0
- height from the surface:
- 17.1 mm / 0.673 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 3) Overvoltage category III / Pollution degree 3
- marking level:
- Side marking
- module width:
- 8 mm / 0.315 inch
- mounting type:
- Mounting flange
- nominal voltage iii 3:
- 400 V
- packaging type:
- Box
- pole no:
- 2
- rated current:
- 18 A
- rated surge voltage iii 3:
- 6 kV
- solid conductor:
- 0.08 1.5 mm / 28 16 AWG
- strip length:
- 8 9 mm / 0.31 0.35 inch
- weight:
- 6.330 g
- width:
- 29.7 mm / 1.117 inch
- wiring direction:
- Side-entry wiring
