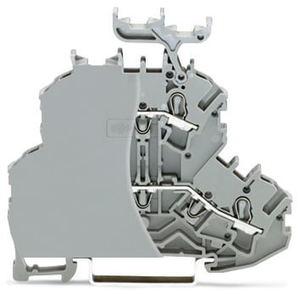

TOPJOBS double-deck terminal block; internally commoned; with gray separator; rail mount; 4-conductor; 6.2 mm wide; gray.
The WAGO 2002 TOPJOB S series is a gray, double-deck feed-through terminal block with internal commoning, built-in end plate, and side/center marking slots, suitable for Ex e II applications. It features one feed-through pole accommodating two push-in connections per deck, supporting wire sizes from 0.25mm² to 4mm² (#22AWG to #12AWG) with a nominal cross-section of 2.5mm² and a rated current of 24A. The terminal block uses Push-in CAGE CLAMP spring connections and mounts on a DIN-35 rail with a width of 6.2mm, equivalent to part number 20022208099000.
- actuation type:
- Push-in || Operating tool
- approvals per:
- UL 1059
- color:
- Gray
- connectable conductor materials:
- Copper
- connection technology:
- Push-in CAGE CLAMP«
- country of origin sales organisation germany:
- DE
- depth from upper edge of din rail:
- 51.7 mm / 2.035 inch
- design:
- Horizontal type
- fine stranded conductor:
- 0.25 ª 4 mm / 22 ª 12 AWG
- fine stranded conductor with ferrule push in termination:
- 1 ª 2.5 mm / 18 ª 14 AWG
- fine stranded conductor with insulated ferrule:
- 0.25 ª 2.5 mm / 22 ª 14 AWG
- fire load:
- 0.301 MJ
- flammability class per ul94:
- V0
- height:
- 69.7 mm / 2.744 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 3) « Overvoltage category III / Pollution degree 3
- marking level:
- Center/side marking
- mounting type:
- DIN-35 rail
- nominal cross section:
- 2.5 mm
- nominal voltage iii 3:
- 800 V
- note conductor cross section:
- Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
- packaging type:
- Box
- rated current:
- 24 A
- rated current ul use group b:
- 20 A
- rated current ul use group c:
- 20 A
- rated current ul use group d:
- 0.208333333333333
- rated surge voltage iii 3:
- 8 kV
- rated voltage ul use group b:
- 600 V
- rated voltage ul use group c:
- 600 V
- rated voltage ul use group d:
- 600 V
- ratings per:
- IEC/EN 60947-7-1
- solid conductor:
- 0.25 ª 4 mm / 22 ª 12 AWG
- solid conductor push in termination:
- 0.75 ª 4 mm / 18 ª 12 AWG
- strip length:
- 10 ª 12 mm / 0.39 ª 0.47 inch
- weight:
- 13.766 g
- width:
- 6.2 mm / 0.244 inch
- wiring direction:
- Front-entry wiring
