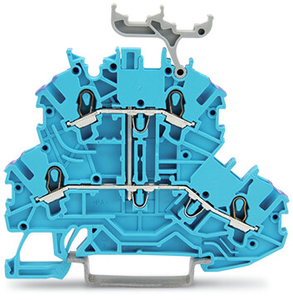

TOPJOBS double-deck terminal block; internally commoned; rail mount; 4-conductor; 5.2 mm wide; blue.

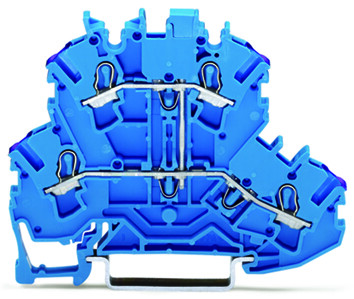

The WAGO 2002 TOPJOB S series neutral-through terminal block is a double-deck terminal block with internal commoning and side/lateral and center marking slots, suitable for Ex e II / Ex I applications. It features a blue "N" marking and accommodates two push-in connections per deck, supporting wire sizes from 0.25mm² to 4mm² (#22AWG to #12AWG) with a nominal cross-section of 2.5mm². The terminal block is rated for currents of 24A and 28A and utilizes Push-in CAGE CLAMP spring connections. It is designed for mounting on a DIN-35 rail (35 x 15 / 35 x 7.5) with a width of 5.2mm, equivalent to model 20022209.
- actuation type:
- Operating tool
- connectable conductor materials note:
- Terminating Aluminum ConductorsWAGO spring clamp terminal blocks are suitable for solid aluminum conductors up to 4 mm/12 AWG if WAGO Alu-Plus Contact Paste is used for termination.Alu-Plus Contact Paste Advantages:Automatically
- color:
- Green-yellow
- connectable conductor materials:
- Copper || Aluminum
- connection technology:
- CAGE CLAMP
- country of origin sales organisation germany:
- DE
- depth from upper edge of din rail:
- 28 mm / 1.102 inch
- design:
- Horizontal type
- fine stranded conductor:
- 0.08 2.5 mm / 28 12 AWG
- fire load:
- 0.090 MJ
- flammability class per ul94:
- V0
- height:
- 50 mm / 1.969 inch
- insulation material:
- Polyamide (PA66)
- marking level:
- Side marking
- mounting type:
- DIN-35 rail
- note conductor cross section:
- 12 AWG: THHN, THWN
- packaging type:
- Box
- ratings per:
- IEC/EN 60947-7-2
- solid conductor:
- 0.08 2.5 mm / 28 12 AWG
- strip length:
- 8 9 mm / 0.31 0.35 inch
- weight:
- 8.750 g
- width:
- 5 mm / 0.197 inch
- wiring direction:
- Front-entry wiring
