| Description | Double-deck terminal block; Through/through terminal block; L/N; with end plate; with marker carrier; gray housing | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Remarks | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Item properties | Miscellaneous
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

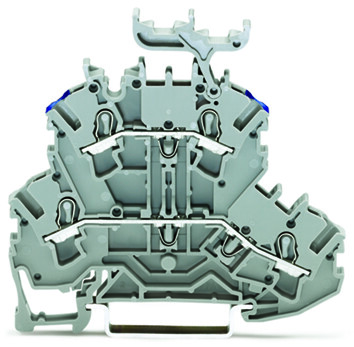

The WAGO 2002 TOPJOB S series terminal block is a double-deck feed-through and neutral-through terminal block with marker carriers, suitable for Ex e II applications. It features side and center marking slots, "L/N" marking, and is gray in color. The terminal block has one feed-through pole and one neutral-through pole, accommodating two push-in connections per pole, with a nominal cross-section of 2.5mm², suitable for wire sizes ranging from 0.25mm² to 4mm² or #22AWG to #12AWG. It supports a rated current of 24A or 28A and uses Push-in CAGE CLAMP spring connections. The terminal block is designed for mounting on a DIN-35 rail and has a width of 5.2mm, equivalent to model number 20022233.
- actuation type:
- Push-in || Operating tool
- approvals per:
- C22.2 No 158
- color:
- Gray
- connectable conductor materials:
- Copper
- connection technology:
- Push-in CAGE CLAMP
- country of origin sales organisation germany:
- DE
- depth from upper edge of din rail:
- 61.8 mm / 2.433 inch
- design:
- Horizontal type
- fine stranded conductor:
- 0.25 4 mm / 22 12 AWG
- fine stranded conductor with ferrule push in termination:
- 1 2.5 mm / 18 14 AWG
- fine stranded conductor with insulated ferrule:
- 0.25 2.5 mm / 22 14 AWG
- fire load:
- 0.218 MJ
- flammability class per ul94:
- V0
- height:
- 69.7 mm / 2.744 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 3) Overvoltage category III / Pollution degree 3
- marking level:
- Center/side marking
- mounting type:
- DIN-35 rail
- nominal cross section:
- 2.5 mm
- nominal voltage iii 3:
- 500 V
- note conductor cross section:
- Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
- number of connection points:
- 2
- number of connection points 2:
- 2
- packaging type:
- Box
- rated current:
- 24 A
- rated current 2:
- 28 A
- rated current csa use group b:
- 20 A
- rated current csa use group c:
- 20 A
- rated current ex e ii:
- 20 A
- rated current ex e ii with jumper:
- 18 A
- rated current ul use group b:
- 20 A
- rated current ul use group c:
- 20 A
- rated current ul use group d:
- 0.208333333333333
- rated surge voltage iii 3:
- 6 kV
- rated voltage csa use group b:
- 600 V
- rated voltage csa use group c:
- 600 V
- rated voltage en ex e ii:
- 440 V
- rated voltage ul use group b:
- 300 V
- rated voltage ul use group c:
- 300 V
- rated voltage ul use group d:
- 600 V
- ratings per:
- IEC/EN 60947-7-1
- solid conductor:
- 0.25 4 mm / 22 12 AWG
- solid conductor push in termination:
- 0.75 4 mm / 18 12 AWG
- strip length:
- 10 12 mm / 0.39 0.47 inch
- weight:
- 10.603 g
- width:
- 5.2 mm / 0.205 inch
- wiring direction:
- Front-entry wiring
