TOPJOBS double-deck terminal block; through/through (N/N); with gray separator; with marker carrier; rail mount; 2-conductor; 6.2 mm wide; gray.

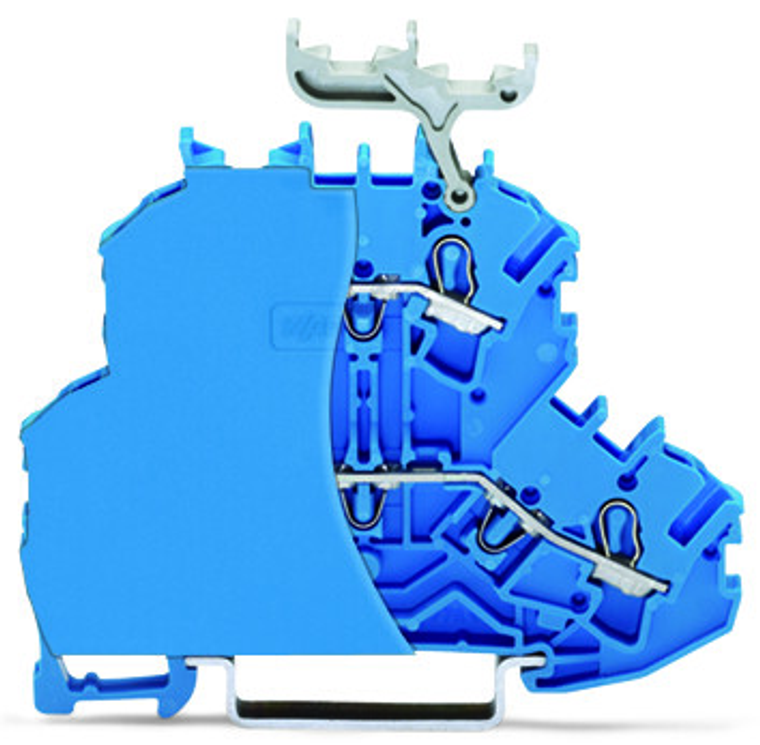

The WAGO 2002 TOPJOB S series terminal block is a blue, double-deck, neutral-through terminal block with built-in end plates and side/lateral and center marking slots. It is suitable for Ex e II / Ex I applications and features "N/N" marking. The terminal block has two neutral-through poles, each accommodating two push-in wires, with a nominal cross-section of 2.5mm² and supporting wire sizes from 0.25mm² to 4mm² (#22AWG to #12AWG). It is rated for a current of 24A and utilizes Push-in CAGE CLAMP spring connections. The terminal block is designed for mounting on a DIN-35 rail (35 x 15 / 35 x 7.5) and has a width of 6.2mm, equivalent to part number 20022234099000.
- actuation type:
- Push-in || Operating tool
- approvals per:
- UL 1059
- color:
- Blue
- connectable conductor materials:
- Copper
- connection technology:
- Push-in CAGE CLAMP
- country of origin sales organisation germany:
- DE
- depth from upper edge of din rail:
- 61.8 mm / 2.433 inch
- design:
- Horizontal type
- fine stranded conductor:
- 0.25 4 mm / 22 12 AWG
- fine stranded conductor with ferrule push in termination:
- 1 2.5 mm / 18 14 AWG
- fine stranded conductor with insulated ferrule:
- 0.25 2.5 mm / 22 14 AWG
- fire load:
- 0.310 MJ
- flammability class per ul94:
- V0
- height:
- 69.7 mm / 2.744 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 3) Overvoltage category III / Pollution degree 3
- marking level:
- Center/side marking
- mounting type:
- DIN-35 rail
- nominal cross section:
- 2.5 mm
- nominal voltage iii 3:
- 800 V
- note conductor cross section:
- Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
- number of connection points:
- 2
- number of connection points 2:
- 2
- packaging type:
- Box
- rated current:
- 24 A
- rated current ul use group b:
- 15 A
- rated current ul use group c:
- 15 A
- rated current ul use group d:
- 0.208333333333333
- rated surge voltage iii 3:
- 8 kV
- rated voltage ul use group b:
- 600 V
- rated voltage ul use group c:
- 600 V
- rated voltage ul use group d:
- 600 V
- ratings per:
- IEC/EN 60947-7-1
- solid conductor:
- 0.25 4 mm / 22 12 AWG
- solid conductor push in termination:
- 0.75 4 mm / 18 12 AWG
- strip length:
- 10 12 mm / 0.39 0.47 inch
- weight:
- 13.653 g
- width:
- 6.2 mm / 0.244 inch
- wiring direction:
- Front-entry wiring
