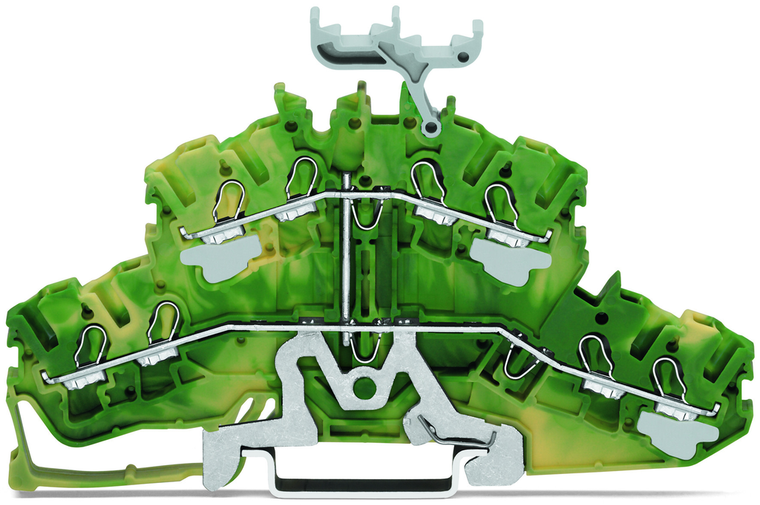

TOPJOBS double-deck ground terminal block; internally commoned; with marker carrier; rail mount; 8-conductor; 5.2 mm wide; green-yellow.
The WAGO 2002 TOPJOB S series ground/earthing terminal block is a green-yellow, double-deck terminal block with internal commoning and multiple marking slots, suitable for Ex e II applications and marked with "PE." It features 1 grounding/protective-earth terminal for 2 x 4-wires (4 push-in + 4 push-in) with a nominal cross-section of 2.5mm², accommodating wire sizes from 0.25mm² to 4mm² or #22AWG to #12AWG. The terminal block uses Push-in CAGE CLAMP spring connections and is designed for mounting on a DIN-35 rail (35 x 15 / 35 x 7.5) with a width of 5.2mm, equivalent to model 20022437.
- actuation type:
- Push-in || Operating tool
- color:
- Green-yellow
- connectable conductor materials:
- Copper
- connection technology:
- Push-in CAGE CLAMP
- country of origin sales organisation germany:
- CN
- depth from upper edge of din rail:
- 62.7 mm / 2.469 inch
- design:
- Horizontal type
- fine stranded conductor:
- 0.25 4 mm / 22 12 AWG
- fine stranded conductor with ferrule push in termination:
- 1 2.5 mm / 18 14 AWG
- fine stranded conductor with insulated ferrule:
- 0.25 2.5 mm / 22 14 AWG
- fire load:
- 0.296 MJ
- flammability class per ul94:
- V0
- height:
- 105.1 mm / 4.138 inch
- insulation material:
- Polyamide (PA66)
- marking level:
- Center/side marking
- mounting type:
- DIN-35 rail
- nominal cross section:
- 2.5 mm
- note conductor cross section:
- Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
- packaging type:
- Box
- ratings per:
- IEC/EN 60947-7-2
- solid conductor:
- 0.25 4 mm / 22 12 AWG
- solid conductor push in termination:
- 0.75 4 mm / 18 12 AWG
- strip length:
- 10 12 mm / 0.39 0.47 inch
- weight:
- 19.390 g
- width:
- 5.2 mm / 0.205 inch
- wiring direction:
- Front-entry wiring
