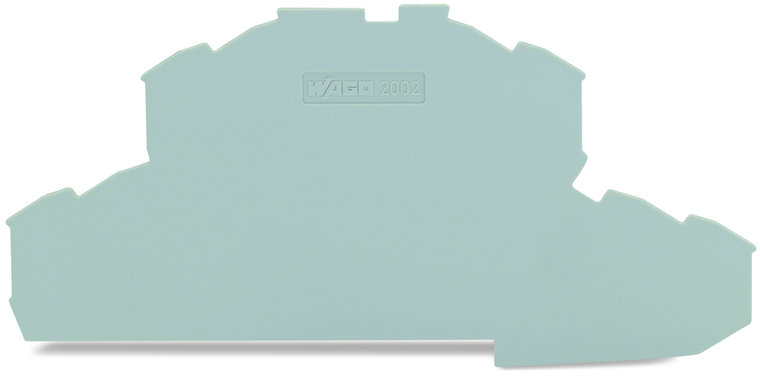

WAGO 2002-2491 Pack of 25

SKU:

2002-2491

UPC:

MPN:

2006-1631/1000-541

Condition:

New

Availability:

In our warehouse: 24

actuation type:

Push-in || Operating tool

approvals per:

C22.2 No 158

type of fuse:

Cylindrical fuse 1/4" x 1 1/4"

color:

Gray

connectable conductor materials:

Copper

connection technology:

Push-in CAGE CLAMP

country of origin sales organisation germany:

DE

depth from upper edge of din rail:

59 mm / 2.323 inch

design:

Horizontal type

fine stranded conductor:

0.5 10 mm / 20 8 AWG

fine stranded conductor with ferrule push in termination:

2.5 6 mm / 16 10 AWG

fine stranded conductor with insulated ferrule:

0.5 6 mm / 20 10 AWG

fire load:

0.332 MJ

flammability class per ul94:

V0

height:

96.3 mm / 3.791 inch

insulation material:

Polyamide (PA66)

legend ratings:

(III / 3) Overvoltage category III / Pollution degree 3

marking level:

Center/side marking

mounting type:

DIN-35 rail

nominal cross section:

6 mm

nominal voltage iii 3:

800 V

note conductor cross section:

Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.

note on rated current 1:

Leakage current in case of a blown fuse: LED 2 mA

operation status indicator:

12 30 V

packaging type:

Box

rated current:

0.416666666666667

rated current csa use group b:

15 A

rated current csa use group c:

15 A

rated current ul use group b:

15 A

rated current ul use group c:

15 A

rated surge voltage iii 3:

8 kV

rated voltage csa use group b:

600 V

rated voltage csa use group c:

600 V

rated voltage ul use group b:

30 V

rated voltage ul use group c:

30 V

ratings note:

Electrical ratings are given by the fuse and blown fuse indication.

ratings per:

IEC/EN 60947-7-3

solid conductor:

0.5 10 mm / 20 8 AWG

solid conductor push in termination:

1 10 mm / 14 8 AWG

strip length:

13 15 mm / 0.51 0.59 inch

weight:

25.507 g

width:

7.5 mm / 0.295 inch

wiring direction:

Front-entry wiring
