WAGO 2002-2492 End and Intermediate Plate for TOPJOB S 2002 Series Terminal Blocks
Wago
$24.75

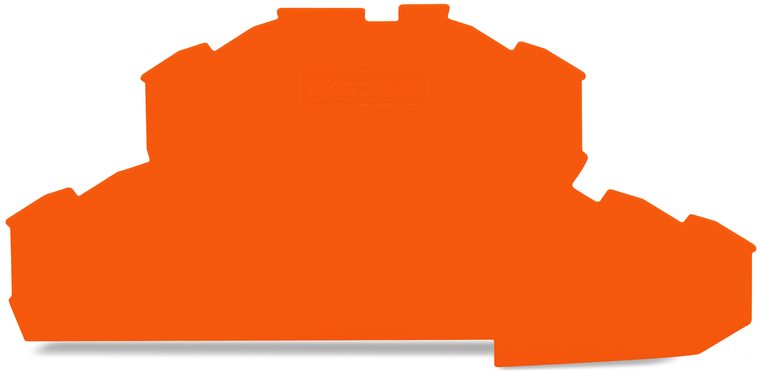

TOPJOBS end/intermediate plate; for 2002-24xx series terminal blocks; 0.8 mm wide; orange.
The WAGO 2002 TOPJOB S series features an end and intermediate plate in an orange color with a width of 0.8mm, equivalent to the model number 20022492.
- actuation type:
- Operating tool || Push-button
- color:
- Black
- connectable conductor materials:
- Copper
- connection technology:
- Push-in CAGE CLAMP
- country of origin sales organisation germany:
- DE
- depth:
- 35 mm / 1.378 inch
- fine stranded conductor:
- 0.5 4 mm / 20 12 AWG
- fine stranded conductor with ferrule push in termination:
- 0.75 mm / 18 AWG
- fine stranded conductor with insulated ferrule:
- 0.5 1.5 mm / 20 16 AWG
- fire load:
- 0.262 MJ
- flammability class per ul94:
- V0
- height from the surface:
- 22.3 mm / 0.878 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 3) Overvoltage category III / Pollution degree 3
- marking:
- Plain
- mounting type:
- Screw mount
- nominal voltage iii 3:
- 500 V
- note conductor cross section:
- Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
- packaging type:
- Bag
- pin spacing:
- 12 mm / 0.472 inch
- pole no:
- 2
- rated current:
- 32 A
- rated surge voltage iii 3:
- 6 kV
- solid conductor:
- 0.5 4 mm / 20 12 AWG
- solid conductor push in termination:
- 0.75 4 mm / 18 12 AWG
- stranded conductor:
- 0.5 4 mm / 20 12 AWG
- strip length:
- 10 11 mm / 0.39 0.43 inch
- weight:
- 13.785 g
- width:
- 24 mm / 0.945 inch
- wiring direction:
- Side-entry wiring
