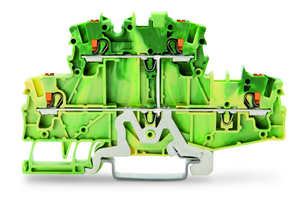

WAGO 2002-2707 double-deck terminal block, 4-conductor ground, 2.5 mm², green-yellow
Wago
$11.23
TOPJOB S double-deck ground terminal block; internally commoned; rail mount; 4-conductor; 5.2 mm wide; green-yellow.
The WAGO 2002 TOPJOB S series ground/earthing terminal block is a double-deck terminal block with internal commoning, side/lateral and center marking slots, and is suitable for Ex e II applications. It features a "PE" marking and is green-yellow in color. The terminal block supports one grounding/protective-earth (1PE) connection and accommodates two push-in connections per deck, allowing for a total of four wires (2+2). It has a nominal cross-section of 2.5mm² and is compatible with wire sizes ranging from 0.25mm² to 4mm² or #22AWG to #12AWG. The terminal block uses Push-in CAGE CLAMP spring connections and is designed for mounting on a DIN-35 rail (35 x 15 / 35 x 7.5) with a width of 5.2mm, equivalent to model 20022707.
- actuation type:
- Push-in || Operating tool
- color:
- Green-yellow
- connectable conductor materials:
- Copper
- connection technology:
- Push-in CAGE CLAMP
- country of origin sales organisation germany:
- DE
- depth from upper edge of din rail:
- 51.7 mm / 2.035 inch
- design:
- Horizontal type
- fine stranded conductor:
- 0.25 4 mm / 22 12 AWG
- fine stranded conductor with ferrule push in termination:
- 1 2.5 mm / 18 14 AWG
- fine stranded conductor with insulated ferrule:
- 0.25 2.5 mm / 22 14 AWG
- fire load:
- 0.008 MJ
- flammability class per ul94:
- V0
- height:
- 92.5 mm / 3.642 inch
- insulation material:
- Polyamide (PA66)
- marking level:
- Center/side marking
- mounting type:
- DIN-35 rail
- nominal cross section:
- 2.5 mm
- note conductor cross section:
- Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
- packaging type:
- Box
- ratings per:
- IEC/EN 60947-7-2
- solid conductor:
- 0.25 4 mm / 22 12 AWG
- solid conductor push in termination:
- 0.75 4 mm / 18 12 AWG
- strip length:
- 10 12 mm / 0.39 0.47 inch
- weight:
- 15.940 g
- width:
- 5.2 mm / 0.205 inch
- wiring direction:
- Front-entry wiring
