Wago 2002-403 Pack of 25

WAGO 2002-403 Pack of 25

Wago
SKU:
2002-403
Availability:
In our warehouse: 41
$33.25
Condition:
New
Current Stock:
Description

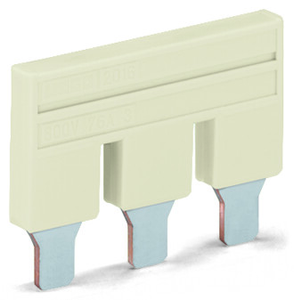

Description Push-in type jumper bar; insulated; 3-way; Nominal current 25 A
Remarks

Item properties

Miscellaneous

Name Value Unit
Color  light gray
Rated voltage (III / 3) [V]  800  V
Rated current [A]  25  A
Rated current (Ex e II) [A]  20  A
Fire load [MJ]  0.01  MJ
Weight [g]  1.38  g
Width  13.8 mm / 0.543 Inch
Height  19 mm / 0.748 Inch
Depth  4.1 mm / 0.161 Inch
.

The insulated push-in type comb-style jumper bar from WAGO's 2002 TOPJOB S series is a 3-way, 3-pole (3P) component designed for electrical connections. It has a rated current of 25A and comes in a light gray color, equivalent to model number 2002403.

Additional Information
color:
Black
connectable sheathed cable diameter:
9 13 mm
continuous operating temperature:
-35 +85 C
country of origin sales organisation germany:
DE
depth:
50 mm / 1.969 inch
fire load:
0.360 MJ
height:
17 mm / 0.669 inch
insulation material:
Polyamide (PA66)
note on continuous operating temperature:
Insulating parts for temperatures ¤ 105 C
packaging type:
Box
pole no:
5
processing temperature:
-5 +40 C
strip length outer insulation:
55 mm
weight:
13.168 g
width:
54.6 mm / 2.15 inch
