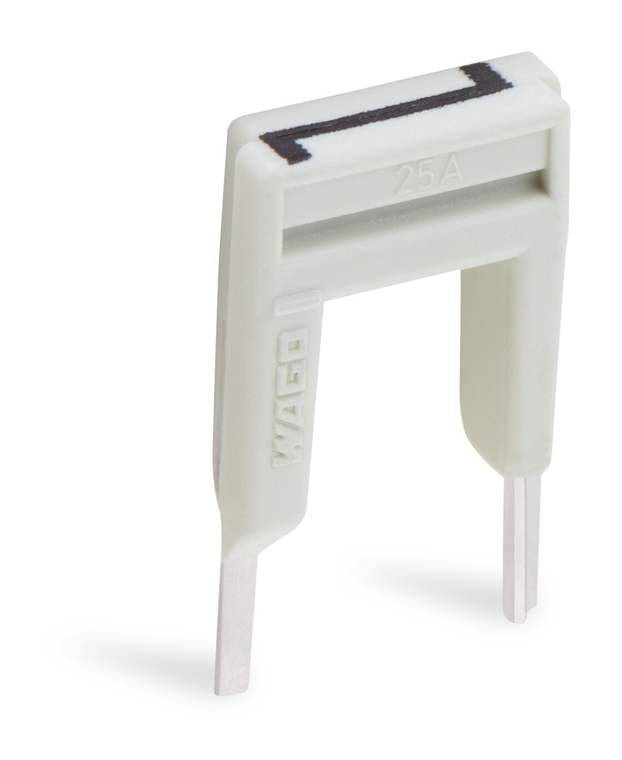

WAGO 2002-423 Pack of 25
Wago
$35.25
| Description | Push-in type jumper bar; insulated; from 1 to 3; Nominal current 25 A | ||||||||||||||||||||||||||||||||
| Remarks | |||||||||||||||||||||||||||||||||
| Item properties | Miscellaneous
| ||||||||||||||||||||||||||||||||
The WAGO 2002 TOPJOB S series insulated adjacent jumper is designed for continuous commoning from 1 to 3 poles (3P) and is rated for a current of 25A. It comes in a light gray color and is equivalent to the model number 2002423.
- actuation type:
- Push-in || Operating tool
- approvals per:
- C22.2 No 158
- type of fuse:
- Cylindrical fuse 1/4" x 1 1/4"
- color:
- Gray
- connectable conductor materials:
- Copper
- connection technology:
- Push-in CAGE CLAMP
- country of origin sales organisation germany:
- DE
- depth from upper edge of din rail:
- 59 mm / 2.323 inch
- design:
- Horizontal type
- fine stranded conductor:
- 0.5 10 mm / 20 8 AWG
- fine stranded conductor with ferrule push in termination:
- 2.5 6 mm / 16 10 AWG
- fine stranded conductor with insulated ferrule:
- 0.5 6 mm / 20 10 AWG
- fire load:
- 0.332 MJ
- flammability class per ul94:
- V0
- height:
- 96.3 mm / 3.791 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 3) Overvoltage category III / Pollution degree 3
- marking level:
- Center/side marking
- mounting type:
- DIN-35 rail
- nominal cross section:
- 6 mm
- nominal voltage iii 3:
- 800 V
- note conductor cross section:
- Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
- note on rated current 1:
- Leakage current in case of a blown fuse: LED 2 mA
- operation status indicator:
- 230 V
- packaging type:
- Box
- rated current:
- 0.416666666666667
- rated current csa use group b:
- 15 A
- rated current csa use group c:
- 15 A
- rated current ul use group b:
- 15 A
- rated current ul use group c:
- 15 A
- rated surge voltage iii 3:
- 8 kV
- rated voltage csa use group b:
- 600 V
- rated voltage csa use group c:
- 600 V
- rated voltage ul use group b:
- 230 V
- rated voltage ul use group c:
- 230 V
- ratings note:
- Electrical ratings are given by the fuse and blown fuse indication.
- ratings per:
- IEC/EN 60947-7-3
- solid conductor:
- 0.5 10 mm / 20 8 AWG
- solid conductor push in termination:
- 1 10 mm / 14 8 AWG
- strip length:
- 13 15 mm / 0.51 0.59 inch
- weight:
- 25.087 g
- width:
- 7.5 mm / 0.295 inch
- wiring direction:
- Front-entry wiring
