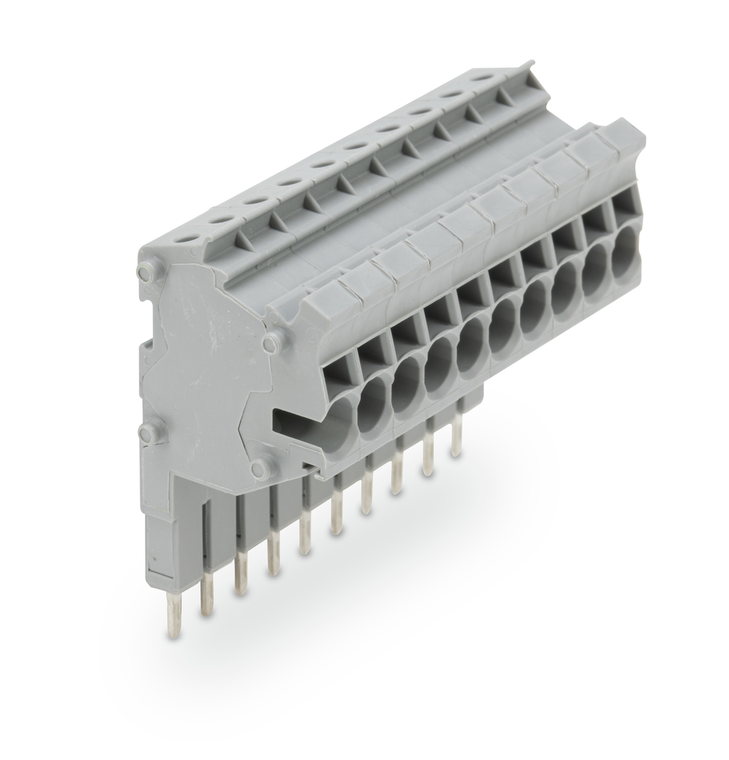

Description | TOPJOB S connector strip; for jumper contact slot; 10-pole |
Remarks | |
|
Item properties | Miscellaneous Name | Value | Unit | No. of poles | 10 | | Total number of connection points | 10 | | Total number of potentials | 10 | | Color | gray | | Rated voltage (III / 3) [V] | 500 | V | Rated impulse voltage (III / 3) [kV] | 6 | kV | Rated current [A] | 24 | A | Connection technology | Push-in CAGE CLAMP | | Number of connection points connector | 1 | | Nominal cross section | 2.5 mm nbsp; | | Solid conductor | 0.25 4 mm / 22 12 AWG | | Solid conductor, push-in termination | 0.75 4 mm / 18 12 AWG | | Fine-stranded conductor | 0.25 4 mm / 22 12 AWG | | Fine-stranded conductor with ferrule, push-in termination fr | 0.75 mm / 18 AWG | | Strip length | 10 12 mm / 0.39 0.47 Inch | | Type of wiring | Side-entry wiring | | Marking level | Center/side marking | | Insulating material | Polyamide 66 (PA 66) | | Fire load [MJ] | 0.51 | MJ | Weight [g] | 27.9 | g | Width | 52 mm / 2.047 Inch | | |
.
The WAGO 2002 TOPJOB S series modular connector is a 10-pole (10P) component designed for wire sizes ranging from 0.25mm² to 4mm² or #22AWG to #12AWG, with a rated current of 24A. It features a gray color and utilizes Push-in CAGE CLAMP spring connections for secure and efficient wiring. The connector is designed for plug-in mounting and is equivalent to the model number 2002560.
