Wago 2002-611

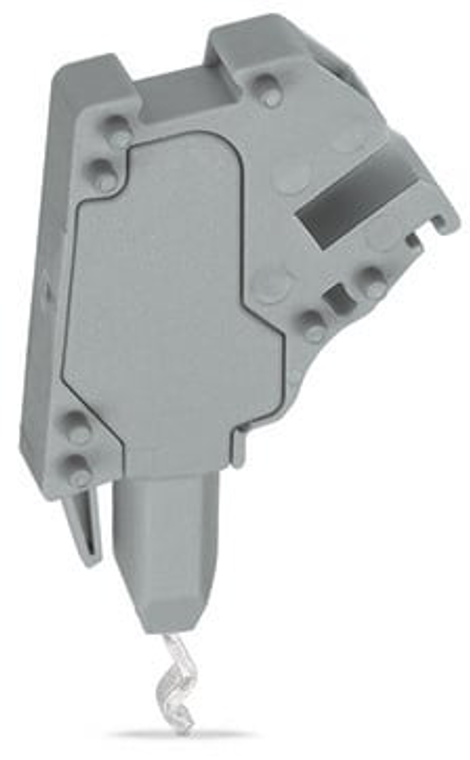

WAGO 2002-611 TOPJOBS L-type test plug module; modular; 1-pole; 2,50 mm²; gray

Wago
SKU:
20020611
$4.83
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
TOPJOB S modular connector; for 2002 series; for conductor entry way; 1-pole; gray.

The L-type test plug module from WAGO's 2002 TOPJOB S series is a 1-pole (1P) component designed for wire sizes ranging from 0.25mm² to 4mm² or #22AWG to #12AWG. It has a rated current of 18A and features a gray color. The module utilizes Push-in CAGE CLAMP spring connections and has a plug-in mounting with a width of 5.2mm. It is equivalent to the model number 2002611.

Additional Information
actuation type:
Operating tool
color:
Gray
connectable conductor materials:
Copper
connection technology:
Push-in CAGE CLAMP
country of origin sales organisation germany:
DE
depth:
19.5 mm / 0.768 inch
fine stranded conductor:
0.25 4 mm / 22 12 AWG
fine stranded conductor with ferrule push in termination:
1 2.5 mm / 18 14 AWG
fine stranded conductor with insulated ferrule:
0.25 2.5 mm / 22 14 AWG
fire load:
0.032 MJ
height:
34.6 mm / 1.362 inch
insulation material:
Polyamide (PA66)
legend ratings:
(III / 3) Overvoltage category III / Pollution degree 3
marking level:
Center marking
module width:
5.2 mm / 0.205 inch
nominal cross section:
2.5 mm
nominal voltage iii 3:
500 V
note conductor cross section:
Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
packaging type:
Box
pole no:
1
rated current:
18 A
rated surge voltage iii 3:
6 kV
safety information 1:
According to EN 61984, pluggable connectors without current interrupting capacity must not be mated or unmated when live or under load.
solid conductor:
0.25 4 mm / 22 12 AWG
solid conductor push in termination:
0.75 4 mm / 18 12 AWG
strip length:
10 12 mm / 0.39 0.47 inch
weight:
1.885 g
width:
5.2 mm / 0.205 inch
wiring direction:
Front-entry wiring
