Wago

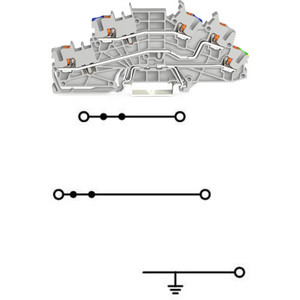

WAGO 2003-6646

SKU:

2003-6646

UPC:

MPN:

2003-6646

Condition:

New

actuation type:

Push-in || Operating tool

approvals per:

C22.2 No 158

color:

Gray

connectable conductor materials:

Copper

connection technology:

Push-in CAGE CLAMP

country of origin sales organisation germany:

CN

depth from upper edge of din rail:

45.2 mm / 1.78 inch

design:

Angled

fine stranded conductor:

0.25 4 mm / 22 12 AWG

fine stranded conductor with ferrule push in termination:

1 2.5 mm / 18 14 AWG

fine stranded conductor with insulated ferrule:

0.25 2.5 mm / 22 14 AWG

fire load:

0.308 MJ

flammability class per ul94:

V0

height:

110 mm / 4.331 inch

insulation material:

Polyamide (PA66)

legend ratings:

(III / 3) Overvoltage category III / Pollution degree 3

marking level:

Center/side marking

mounting type:

DIN-35 rail

nominal cross section:

2.5 mm

nominal voltage iii 3:

250 V

note conductor cross section:

Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.

packaging type:

Box

rated current:

24 A

rated current 2:

28 A

rated current csa use group b:

20 A

rated current csa use group d:

15 A

rated current ul use group b:

20 A

rated current ul use group c:

20 A

rated current ul use group d:

20 A

rated surge voltage iii 3:

4 kV

rated surge voltage iii 3 2:

6 kV

rated voltage csa use group b:

300 V

rated voltage csa use group d:

150 V

rated voltage iii 3 2:

400 V

rated voltage ul use group b:

300 V

rated voltage ul use group c:

300 V

rated voltage ul use group d:

300 V

ratings note:

Potential ground

ratings note 2:

Potential potential

solid conductor:

0.25 4 mm / 22 12 AWG

solid conductor push in termination:

0.75 4 mm / 18 12 AWG

strip length:

10 12 mm / 0.39 0.47 inch

weight:

20.052 g

width:

5.2 mm / 0.205 inch

wiring direction:

Front-entry wiring
