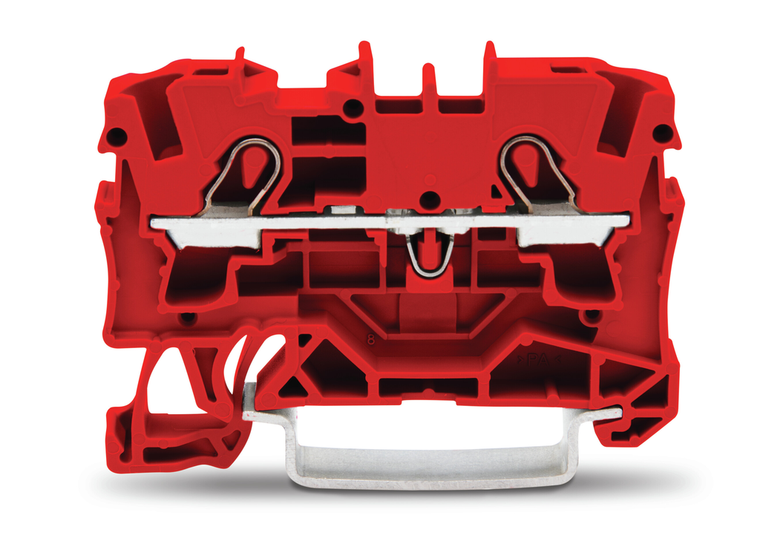

WAGO 2004-1203 2-conductor through terminal block; 4 mm²; suitable for Ex e II applications; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP; 4,00 mm²; red
Wago
$2.21
TOPJOBS feedthrough terminal block; rail mount; 2-conductor; 6.2 mm wide; red.
The WAGO 2004 TOPJOB S series feed-through terminal block is a red, single-deck component with side and center marking slots, designed for Ex e II applications. It features one feed-through pole accommodating two wires via push-in connections, suitable for wire sizes ranging from 0.5mm² to 6mm² or #20AWG to #10AWG, with a nominal cross-section of 4mm². The terminal block supports a rated current of 32A or 41A and utilizes Push-in CAGE CLAMP spring connections. It is mounted on a DIN-35 rail (35 x 15 / 35 x 7.5) and has a width of 6.2mm, equivalent to model 20041203.
- actuation type:
- Push-in || Operating tool
- approvals per:
- C22.2 No 158
- color:
- Red
- connectable conductor materials:
- Copper
- connection technology:
- Push-in CAGE CLAMP
- country of origin sales organisation germany:
- DE
- depth from upper edge of din rail:
- 32.9 mm / 1.295 inch
- design:
- Horizontal type
- fine stranded conductor:
- 0.5 6 mm / 20 10 AWG
- fine stranded conductor with ferrule push in termination:
- 1.5 4 mm / 18 12 AWG
- fine stranded conductor with insulated ferrule:
- 0.5 4 mm / 20 12 AWG
- fire load:
- 0.114 MJ
- flammability class per ul94:
- V0
- height:
- 52.3 mm / 2.059 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 3) Overvoltage category III / Pollution degree 3
- marking level:
- Center/side marking
- mounting type:
- DIN-35 rail
- nominal cross section:
- 4 mm
- nominal voltage iii 3:
- 800 V
- note conductor cross section:
- Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
- packaging type:
- Box
- rated current:
- 32 A
- rated current 2:
- 41 A
- rated current csa use group b:
- 30 A
- rated current csa use group c:
- 30 A
- rated current ex e ii:
- 30 A
- rated current ul use group b:
- 30 A
- rated current ul use group c:
- 30 A
- rated surge voltage iii 3:
- 8 kV
- rated voltage csa use group b:
- 600 V
- rated voltage csa use group c:
- 600 V
- rated voltage en ex e ii:
- 550 V
- rated voltage ul use group b:
- 600 V
- rated voltage ul use group c:
- 600 V
- ratings per:
- ATEX: PTB 05 ATEX 1095 U / IECEx: PTB 05.0033U (Ex eb IIC Gb)
- solid conductor:
- 0.5 6 mm / 20 10 AWG
- solid conductor push in termination:
- 1.5 6 mm / 14 10 AWG
- strip length:
- 11 13 mm / 0.43 0.51 inch
- weight:
- 6.325 g
- width:
- 6.2 mm / 0.244 inch
- wiring direction:
- Front-entry wiring
