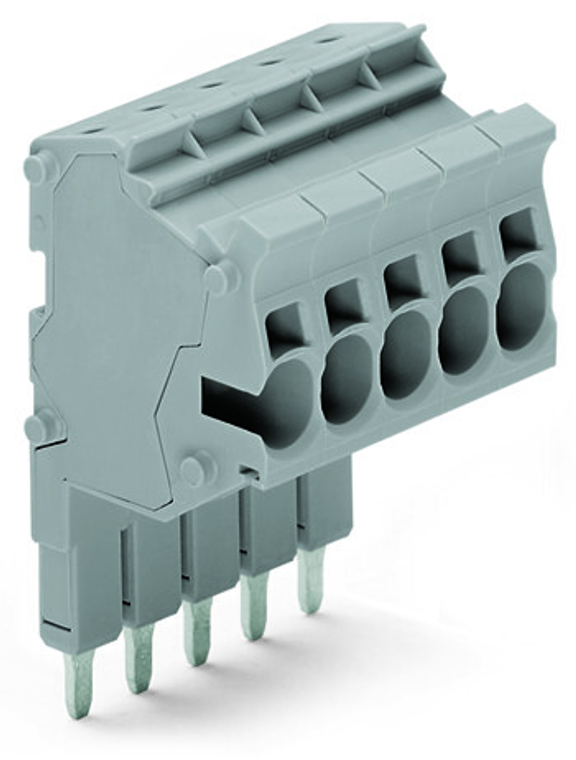

TOPJOB S connector; modular; for jumper contact slot; 4-pole.
The WAGO 2004 TOPJOB S series modular connector is a 4-pole (4P) device designed for wire sizes ranging from 0.5mm² to 6mm² or #20AWG to #10AWG, with a rated current of 32A. It features a gray color and utilizes Push-in CAGE CLAMP spring connections for secure and efficient wiring. The connector is designed for plug-in mounting and is equivalent to the model number 2004554.
- actuation type:
- Operating tool
- color:
- Gray
- connection technology:
- Push-in CAGE CLAMP
- country of origin sales organisation germany:
- DE
- fine stranded conductor:
- 0.5 6 mm / 20 10 AWG
- fine stranded conductor with ferrule push in termination:
- 1.5 4 mm / 18 12 AWG
- fine stranded conductor with insulated ferrule:
- 0.5 4 mm / 20 12 AWG
- fire load:
- 0.024 MJ
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 3) Overvoltage category III / Pollution degree 3
- marking level:
- Center/side marking
- module width:
- 6.2 mm / 0.244 inch
- nominal cross section:
- 4 mm
- nominal voltage iii 3:
- 500 V
- note conductor cross section:
- Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
- packaging type:
- Box
- pole no:
- 4
- rated current:
- 32 A
- rated surge voltage iii 3:
- 6 kV
- safety information 1:
- According to EN 61984, pluggable connectors without current interrupting capacity must not be mated or unmated when live or under load.
- solid conductor:
- 0.5 6 mm / 20 10 AWG
- solid conductor push in termination:
- 1.5 6 mm / 14 10 AWG
- strip length:
- 11 13 mm / 0.43 0.51 inch
- weight:
- 17.980 g
- width:
- 24.8 mm / 0.976 inch
- wiring direction:
- Side-entry wiring
