WAGO 2006-1631/1099-867
Wago
$24.57

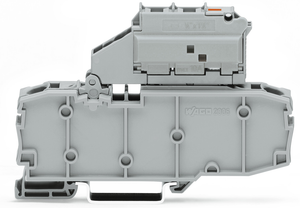

Fuse disconnect terminal block with pivoting fuse holder and end plate; for miniature metric fuse 1/4" x 11/4"; with blown fuse indication.
The WAGO 2006 TOPJOB S series feed-through terminal block is a gray, single-level unit featuring a fused-disconnect lever type with a 1/4" x 1-1/4" fuse and a 120Vdc blown-fuse LED indicator. It includes a built-in end plate, side/lateral and center marking slots, and accommodates one feed-through pole with two push-in wire connections. The terminal block supports a nominal cross-section of 6mm² and wire sizes ranging from 0.5mm² to 10mm² or #20AWG to #8AWG, with a rated current of 10A. It utilizes Push-in CAGE CLAMP spring connections and is designed for mounting on a DIN-35 rail, measuring 10.4mm in width.
- color:
- Gray
- country of origin sales organisation germany:
- DE
- fire load:
- 0.033 MJ
- height:
- 9 mm / 0.354 inch
- packaging type:
- Box
- rated current:
- 57 A
- rated current ex e ii:
- 53 A
- weight:
- 5.100 g
- width:
- 20 mm / 0.787 inch
