WAGO 2006-1671/1000-848 Ground Conductor Disconnect Terminal Block, 4-Pole, 30 A, 6 mm², Push-In CAGE CLAMP®, Gray
Wago
$78.47
Ground conductor disconnect terminal block; with test option; with orange disconnect link; 24 V; 6 mm; Push-in CAGE CLAMP.

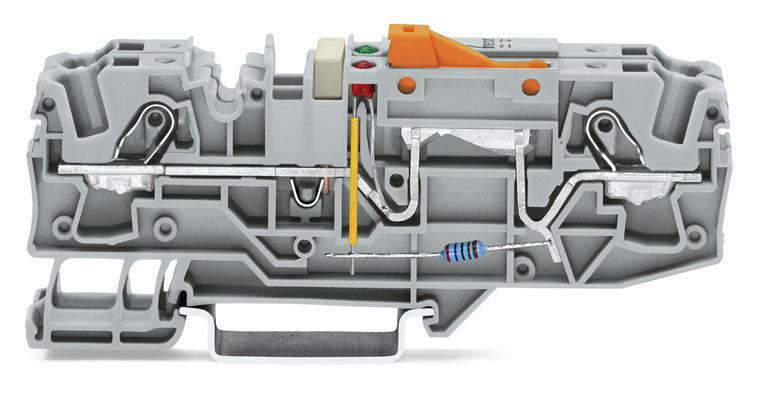

The WAGO 2006 TOPJOB S series ground conductor disconnect terminal block is a gray, 1-deck/level unit featuring a knife-disconnect, LED indicator (24Vdc), and side/lateral and center marking slots. It includes a test point and supports a 1-pole disconnect feed-through with 4 push-in wire connections (2+2). The terminal block accommodates a nominal cross-section of 6mm² and wire sizes ranging from 0.5mm² to 10mm² or #20AWG to #8AWG. It utilizes Push-in CAGE CLAMP spring connections and is designed for DIN-35 rail mounting with a 15mm width, equivalent to model 200616711000848.
- actuation type:
- Push-in || Operating tool
- approvals per:
- C22.2 No 158
- color:
- Gray
- connectable conductor materials:
- Copper
- connection technology:
- Push-in CAGE CLAMP
- country of origin sales organisation germany:
- CN
- depth from upper edge of din rail:
- 36.8 mm / 1.449 inch
- design:
- Horizontal type
- fine stranded conductor:
- 0.5 10 mm / 20 8 AWG
- fine stranded conductor with ferrule push in termination:
- 2.5 6 mm / 16 10 AWG
- fine stranded conductor with insulated ferrule:
- 0.5 6 mm / 20 10 AWG
- fire load:
- 0.632 MJ
- flammability class per ul94:
- V0
- height:
- 96.3 mm / 3.791 inch
- insulation material:
- Polyamide (PA66)
- marking level:
- Center/side marking
- mounting type:
- DIN-35 rail
- nominal cross section:
- 6 mm
- note conductor cross section:
- Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
- operation status indicator:
- 24 V
- packaging type:
- Box
- rated current csa use group b:
- 30 A
- rated current csa use group c:
- 30 A
- rated current ul use group b:
- 30 A
- rated current ul use group c:
- 30 A
- rated voltage csa use group b:
- 24 V
- rated voltage csa use group c:
- 24 V
- rated voltage ul use group b:
- 24 V
- rated voltage ul use group c:
- 24 V
- solid conductor:
- 0.5 10 mm / 20 8 AWG
- solid conductor push in termination:
- 2.5 10 mm / 14 8 AWG
- strip length:
- 13 15 mm / 0.51 0.59 inch
- weight:
- 39.826 g
- width:
- 15 mm / 0.591 inch
- wiring direction:
- Front-entry wiring
