WAGO 2006-1671/1000-849 Ground Disconnect Terminal Block, 48 V, 6 mm², Push-in CAGE CLAMP®, Gray
Wago
$78.47
Ground conductor disconnect terminal block; with test option; with orange disconnect link; 48 V; 6 mm; Push-in CAGE CLAMP.

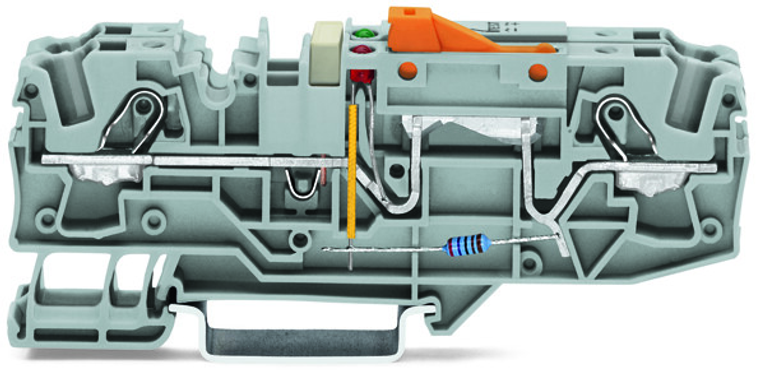

The WAGO 2006 TOPJOB S series ground conductor disconnect terminal block is a versatile electrical component featuring a single deck with a knife-disconnect, an LED indicator for 48Vdc, and slots for side/lateral and center marking. It includes a test point and supports a 1-pole disconnect feed-through with four push-in wire connections (2+2), accommodating wire sizes from 0.5mm² to 10mm² or #20AWG to #8AWG. The terminal block has a nominal cross-section of 6mm² and utilizes Push-in CAGE CLAMP spring connections for secure and efficient wiring. It is designed for mounting on a DIN-35 rail with a 15mm width and is equivalent to model number 200616711000849.
- actuation type:
- Push-in || Operating tool
- approvals per:
- C22.2 No 158
- color:
- Gray
- connectable conductor materials:
- Copper
- connection technology:
- Push-in CAGE CLAMP
- country of origin sales organisation germany:
- DE
- depth from upper edge of din rail:
- 36.8 mm / 1.449 inch
- design:
- Horizontal type
- fine stranded conductor:
- 0.5 10 mm / 20 8 AWG
- fine stranded conductor with ferrule push in termination:
- 2.5 6 mm / 16 10 AWG
- fine stranded conductor with insulated ferrule:
- 0.5 6 mm / 20 10 AWG
- fire load:
- 0.660 MJ
- flammability class per ul94:
- V0
- height:
- 96.3 mm / 3.791 inch
- insulation material:
- Polyamide (PA66)
- marking level:
- Center/side marking
- mounting type:
- DIN-35 rail
- nominal cross section:
- 6 mm
- note conductor cross section:
- Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
- operation status indicator:
- 48 V
- packaging type:
- Box
- rated current csa use group b:
- 30 A
- rated current csa use group c:
- 30 A
- rated current ul use group b:
- 30 A
- rated current ul use group c:
- 30 A
- rated voltage csa use group b:
- 48 V
- rated voltage csa use group c:
- 48 V
- rated voltage ul use group b:
- 48 V
- rated voltage ul use group c:
- 48 V
- solid conductor:
- 0.5 10 mm / 20 8 AWG
- solid conductor push in termination:
- 2.5 10 mm / 14 8 AWG
- strip length:
- 13 15 mm / 0.51 0.59 inch
- weight:
- 41.800 g
- width:
- 15 mm / 0.591 inch
- wiring direction:
- Front-entry wiring
