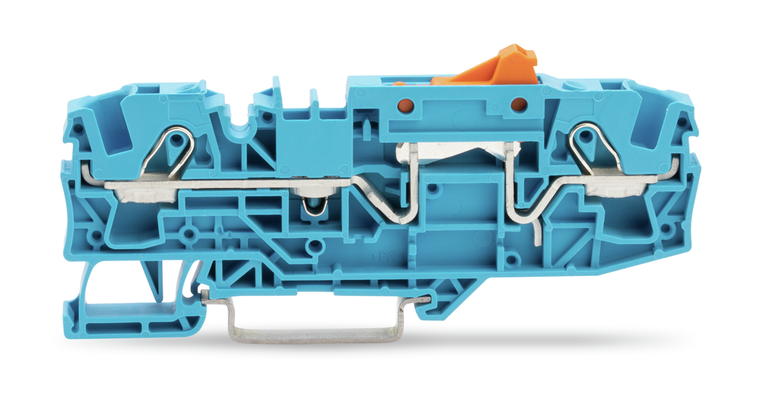

WAGO 2006-1674 Disconnect Terminal Block, 2-Conductor, 30A, 6mm², Push-In CAGE CLAMP, Blue
Wago
$12.69
Disconnect terminal block; with test option; orange disconnect link; 2-conductor; 7.5 mm; blue.
The WAGO 2006 TOPJOB S series neutral-through disconnect terminal block is a blue, 1-deck/level component featuring a knife-disconnect, side/lateral and center marking slots, and a test point. It supports one disconnect neutral-through pole (1N) and accommodates two wires (1 push-in + 1 push-in) with a nominal cross-section of 6mm², suitable for wire sizes ranging from 0.5mm² to 10mm² or #20AWG to #8AWG. Rated for a current of 30A, it utilizes Push-in CAGE CLAMP spring connections and mounts on a DIN-35 rail (35 x 15 / 35 x 7.5) with a width of 7.5mm, equivalent to model 20061674.
- actuation type:
- Push-in || Operating tool
- approvals per:
- C22.2 No 158
- color:
- Blue
- connectable conductor materials:
- Copper
- connection technology:
- Push-in CAGE CLAMP
- country of origin sales organisation germany:
- CN
- depth from upper edge of din rail:
- 36.8 mm / 1.449 inch
- design:
- Horizontal type
- fine stranded conductor:
- 0.5 10 mm / 20 8 AWG
- fine stranded conductor with ferrule push in termination:
- 2.5 6 mm / 16 10 AWG
- fine stranded conductor with insulated ferrule:
- 0.5 6 mm / 20 10 AWG
- fire load:
- 0.294 MJ
- flammability class per ul94:
- V0
- height:
- 96.3 mm / 3.791 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 3) Overvoltage category III / Pollution degree 3
- marking level:
- Center/side marking
- mounting type:
- DIN-35 rail
- nominal cross section:
- 6 mm
- nominal voltage iii 3:
- 800 V
- note conductor cross section:
- Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
- packaging type:
- Box
- rated current:
- 30 A
- rated current csa use group b:
- 30 A
- rated current csa use group c:
- 30 A
- rated current ul use group b:
- 30 A
- rated current ul use group c:
- 30 A
- rated surge voltage iii 3:
- 8 kV
- rated voltage csa use group b:
- 600 V
- rated voltage csa use group c:
- 600 V
- rated voltage ul use group b:
- 600 V
- rated voltage ul use group c:
- 600 V
- solid conductor:
- 0.5 10 mm / 20 8 AWG
- solid conductor push in termination:
- 2.5 10 mm / 14 8 AWG
- strip length:
- 13 15 mm / 0.51 0.59 inch
- weight:
- 19.500 g
- width:
- 7.5 mm / 0.295 inch
- wiring direction:
- Front-entry wiring
