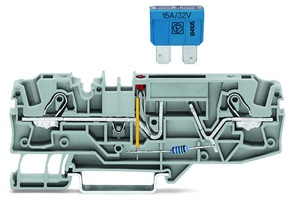

WAGO 2006-1681/1000-434 2-Conductor Fuse Terminal Block for Automotive Blade-Style Fuses, 25A, 24V, Push-In CAGE CLAMP, Gray
Wago
$22.71
2-conductor fuse terminal block for mini-automotive blade-style fuses; with test option; 24 V; with blown fuse indication by LED; Power consumption LED: 4.8 mA.
The WAGO 2006 TOPJOB S series is a gray feed-through terminal block featuring a single deck with a blade-style fused disconnect and a blown-fuse LED indicator for 24Vdc. It includes side and center marking slots, a test point, and accommodates one disconnect feed-through pole for two wires using push-in connections. The terminal block supports a nominal cross-section of 6mm² and wire sizes ranging from 0.5mm² to 10mm² or #20AWG to #8AWG, with a rated current of 25A to 30A. It utilizes Push-in CAGE CLAMP spring connections and is designed for mounting on a DIN-35 rail with a width of 7.5mm.
- actuation type:
- Push-in || Operating tool
- approvals per:
- UL 1059
- type of fuse:
- Flat blade fuse 19.1 x 5.1 x 18.5 mm
- color:
- Gray
- connectable conductor materials:
- Copper
- connection technology:
- Push-in CAGE CLAMP
- country of origin sales organisation germany:
- DE
- depth from upper edge of din rail:
- 32.9 mm / 1.295 inch
- design:
- Horizontal type
- fine stranded conductor:
- 0.5 10 mm / 20 8 AWG
- fine stranded conductor with ferrule push in termination:
- 2.5 6 mm / 16 10 AWG
- fine stranded conductor with insulated ferrule:
- 0.5 6 mm / 20 10 AWG
- fire load:
- 0.322 MJ
- flammability class per ul94:
- V0
- height:
- 96.3 mm / 3.791 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 3) Overvoltage category III / Pollution degree 3
- marking level:
- Center/side marking
- mounting type:
- DIN-35 rail
- nominal cross section:
- 6 mm
- nominal voltage iii 3:
- 500 V
- note conductor cross section:
- Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
- operation status indicator:
- 24 V
- packaging type:
- Box
- rated current:
- 25 A
- rated current 2:
- 30 A
- rated current csa use group b:
- 30 A
- rated current csa use group c:
- 30 A
- rated current ul use group b:
- 30 A
- rated current ul use group c:
- 30 A
- rated surge voltage iii 3:
- 8 kV
- rated voltage csa use group b:
- 24 V
- rated voltage csa use group c:
- 24 V
- rated voltage ul use group b:
- 24 V
- rated voltage ul use group c:
- 24 V
- ratings note:
- Electrical ratings are given by the fuse and blown fuse indication.
- ratings note 2:
- Blade-style fuses: Observe touch-proof protection for 42 V and higher voltages!
- ratings per:
- IEC/EN 60947-7-3
- solid conductor:
- 0.5 10 mm / 20 8 AWG
- solid conductor push in termination:
- 2.5 10 mm / 14 8 AWG
- strip length:
- 13 15 mm / 0.51 0.59 inch
- weight:
- 17.700 g
- width:
- 7.5 mm / 0.295 inch
- wiring direction:
- Front-entry wiring
