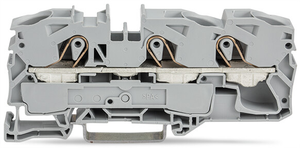

Distribution terminal block; with operating slots; 1 x 6 mm² / 6 x 1.5 mm²; with integrated end plate; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP; 6,00 mm²; dark gray-yellow.
The WAGO 2006 TOPJOB S series feed-through distribution terminal block features a single deck with a built-in end plate, side and center marking slots, and is dark gray-yellow in color. It supports one feed-through pole and accommodates up to seven wires (one push-in and six push-in) with a nominal cross-section of 6mm², suitable for wire sizes ranging from 0.5mm² to 10mm² or #20AWG to #8AWG. The terminal block is rated for currents of 41A and 57A, utilizes Push-in CAGE CLAMP spring connections, and mounts on a DIN-35 rail with dimensions of 35 x 15 or 35 x 7.5mm, and has a width of 9mm. It is equivalent to part number 20068031000053.
- actuation type:
- Push-in || Operating tool
- clamping spring material:
- Chrome-nickel spring steel (CrNi)
- color:
- Dark gray-yellow
- connectable conductor materials:
- Copper
- connection technology:
- Push-in CAGE CLAMP®
- connection technology 2:
- Push-in CAGE CLAMP®
- connection type 1:
- Input
- connection type 2:
- Output
- CONTINUOUS OPERATING TEMPERATURE:
- -60 ¢¦ +105 °C
- COUNTRY OF ORIGIN VKORG GERMANY:
- DE
- CUSTOMS TARIFF NUMBER VKORG GERMANY:
- 85369010000
- DEPTH FROM UPPER EDGE OF DIN RAIL:
- 32.9 mm / 1.295 inches
- FINE STRANDED CONDUCTOR:
- 0.5 ¢¦ 10 mm² / 20 ¢¦ 8 AWG
- FINE STRANDED CONDUCTOR 2:
- 0.25 ¢¦ 2.5 mm² / 22 ¢¦ 14 AWG
- FINE STRANDED CONDUCTOR WITH FERRULE PUSH IN TERMINATION:
- 2.5 ¢¦ 6 mm² / 16 ¢¦ 10 AWG
- FINE STRANDED CONDUCTOR WITH FERRULE PUSH IN TERMINATION 2:
- 0.75 ¢¦ 1.5 mm² / 18 ¢¦ 16 AWG
- FINE STRANDED CONDUCTOR WITH INSULATED FERRULE:
- 0.5 ¢¦ 6 mm² / 20 ¢¦ 10 AWG
- FINE STRANDED CONDUCTOR WITH INSULATED FERRULE 2:
- 0.25 ¢¦ 1.5 mm² / 22 ¢¦ 16 AWG
- FIRE LOAD:
- 0.316 MJ
- FLAMMABILITY CLASS PER UL94:
- V0
- HEIGHT:
- 73.8 mm / 2.905 inches
- INSULATION MATERIAL:
- Polyamide (PA66)
- LEGEND RATINGS:
- (III / 3) ¢ Overvoltage category III / Pollution degree 3
- MARKING LEVEL:
- Center/side marking
- MATERIAL GROUP:
- I
- MEASUREMENT ERROR DEVIATION MAX FROM THE UPPER RANGE VALUE:
- MEASUREMENT ERROR DEVIATION MAX OF THE UPPER RANGE VALUE 2=
- MISMATING PROTECTION:
- MOUNTING NOTE=
- MOUNTING TYPE:
- DIN-35 rail
- NOMINAL CROSS SECTION:
- 6 mm²
- NOMINAL CROSS SECTION 2:
- 1.5 mm²
- NOMINAL VOLTAGE III 3:
- 800 V
- NOTE CONDUCTOR CROSS SECTION:
- Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
- NOTE MATERIAL DATA:
- Information on material data can be found here
- NUMBER OF CONNECTION POINTS:
- 1
- NUMBER OF CONNECTION POINTS 2:
- 6
- POWER LOSS PER POLE POTENTIAL:
- 1.3112 W
- PROCESSING TEMPERATURE:
- -35 ¢¦ +85 °C
- PRODUCT GROUP CODE:
- 22
- RATED CURRENT:
- 41 A
- RATED CURRENT 2:
- 57 A
- RATED CURRENT IN FOR SPECIFIED POWER LOSS:
- 41 A
- RATED IMPULSE VOLTAGE III 3:
- 8 kV
- RESISTANCE VALUE FOR SPECIFIED CURRENT DEPENDENT POWER LOSS:
- 0.00078 ©
- SOLID CONDUCTOR:
- 0.5 ¢¦ 10 mm² / 20 ¢¦ 8 AWG
- SOLID CONDUCTOR 2:
- 0.25 ¢¦ 2.5 mm² / 22 ¢¦ 14 AWG
- SOLID CONDUCTOR PUSH IN TERMINATION:
- 2.5 ¢¦ 10 mm² / 14 ¢¦ 8 AWG
- SOLID CONDUCTOR PUSH IN TERMINATION 2:
- 0.75 ¢¦ 2.5 mm² / 18 ¢¦ 14 AWG
- STRIP LENGTH:
- 13 ¢¦ 15 mm / 0.51 ¢¦ 0.59 inches
- STRIP LENGTH 2:
- 9 ¢¦ 11 mm / 0.35 ¢¦ 0.43 inches
- WEIGHT:
- 16.186 g
- WIDTH:
- 9 mm / 0.354 inches
- WIRING DIRECTION:
- Front-entry wiring
