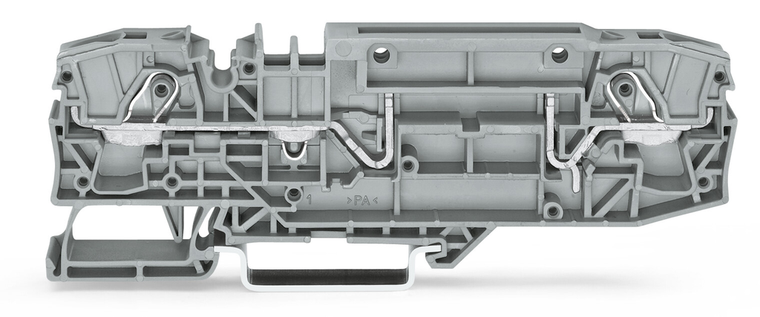

WAGO 2006-8661
Wago
$11.49
Carrier terminal block; with test option; 2-conductor; 7.5 mm; gray.
The WAGO 2006 TOPJOB S series carrier feed-through terminal block is a gray, 1-deck/level component with side and center marking slots, featuring a test point and a single disconnect feed-through pole (1P) for two wires (1 push-in + 1 push-in). It supports a nominal cross-section of 6mm² and accommodates wire sizes from 0.5mm² to 10mm² or #20AWG to #8AWG, with a rated current of 30A. The terminal block utilizes Push-in CAGE CLAMP spring connections and is designed for mounting on a DIN-35 rail (35 x 15 / 35 x 7.5) with a 15mm width, equivalent to model number 20068661.
- actuation type:
- Push-in || Operating tool
- approvals per:
- C22.2 No 158
- color:
- Gray
- connectable conductor materials:
- Copper
- connection technology:
- Push-in CAGE CLAMP
- country of origin sales organisation germany:
- DE
- depth from upper edge of din rail:
- 33 mm / 1.299 inch
- design:
- Horizontal type
- fine stranded conductor:
- 0.5 10 mm / 20 8 AWG
- fine stranded conductor with ferrule push in termination:
- 2.5 6 mm / 16 10 AWG
- fine stranded conductor with insulated ferrule:
- 0.5 6 mm / 20 10 AWG
- fire load:
- 0.645 MJ
- flammability class per ul94:
- V0
- height:
- 106.9 mm / 4.209 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 3) Overvoltage category III / Pollution degree 3
- marking level:
- Center/side marking
- mounting type:
- DIN-35 rail
- nominal cross section:
- 6 mm
- nominal voltage iii 3:
- 1000 V
- note conductor cross section:
- Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
- packaging type:
- Box
- rated current:
- 30 A
- rated current csa use group b:
- 30 A
- rated current csa use group c:
- 30 A
- rated current ul use group b:
- 30 A
- rated current ul use group c:
- 30 A
- rated surge voltage iii 3:
- 12 kV
- rated surge voltage iii 3 2:
- 12 kV
- rated voltage csa use group b:
- 600 V
- rated voltage csa use group c:
- 1000 V
- rated voltage iii 3 2:
- 1500 V
- rated voltage ul use group b:
- 600 V
- rated voltage ul use group c:
- 600 V
- ratings per:
- IEC/EN 60947-7-1
- solid conductor:
- 0.5 10 mm / 20 8 AWG
- solid conductor push in termination:
- 2.5 10 mm / 14 8 AWG
- strip length:
- 13 15 mm / 0.51 0.59 inch
- weight:
- 28.528 g
- width:
- 15 mm / 0.591 inch
- wiring direction:
- Front-entry wiring
