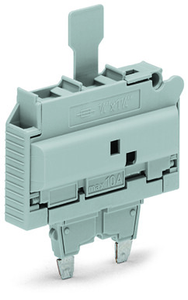

Fuse plug with pull-tab; for miniature metric fuse 1/4" x 11/4"; with indicator lamp; 30 - 65 V; 10.4 mm wide.
The WAGO 2006 TOPJOB S series fuse plug features a pull-tab and an LED indicator, operates with a supply voltage of 30-65Vdc, and has a rated current of 10A. It is gray in color, designed for plug-in mounting, and is compatible with 1/4" x 1-1/4" glass cartridge fuses. This fuse plug is equivalent to the model number 20069311099542.
- approvals per:
- UL 1059
- type of fuse:
- Cylindrical fuse 1/4" x 1 1/4"
- color:
- Gray
- country of origin sales organisation germany:
- DE
- fire load:
- 0.609 MJ
- marking level:
- Center marking
- nominal voltage iii 3:
- 800 V
- note on rated current 1:
- Leakage current in case of a blown fuse: LED 2 mA
- operation status indicator:
- 30 65 V
- packaging type:
- Box
- rated current:
- 0.416666666666667
- rated current csa use group b:
- 15 A
- rated current csa use group c:
- 15 A
- rated current ul use group b:
- 15 A
- rated current ul use group c:
- 15 A
- rated voltage csa use group b:
- 600 V
- rated voltage csa use group c:
- 600 V
- rated voltage ul use group b:
- 65 V
- rated voltage ul use group c:
- 65 V
- ratings note:
- Electrical ratings are given by the fuse and blown fuse indication.
- weight:
- 16.321 g
- width:
- 10.4 mm / 0.409 inch
