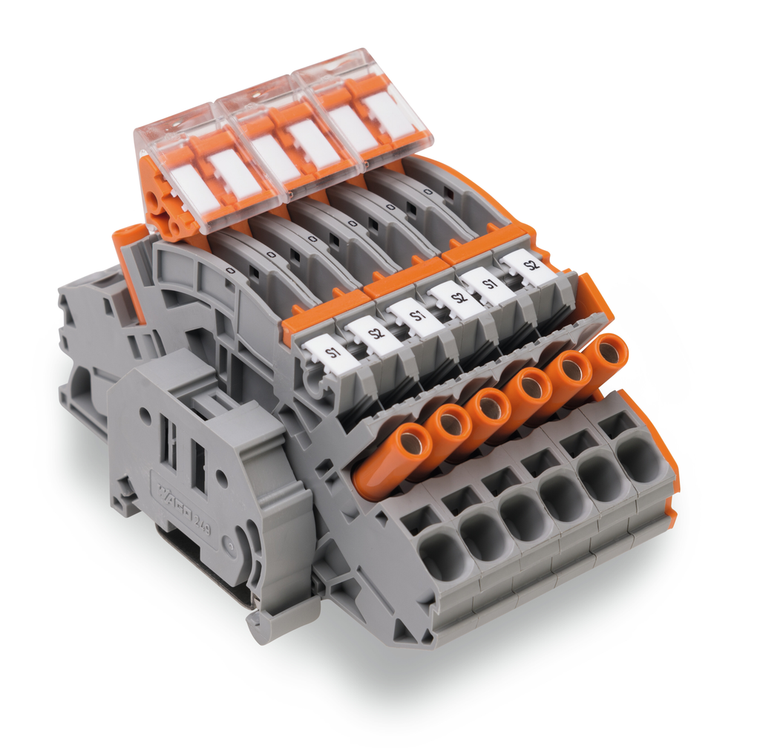

Compact terminal block.
The WAGO 2007 TOPJOB S series compact terminal block features a 1-deck/level design with side/lateral and center marking slots, suitable for C.T. connections. It comes with gray and orange plugs and supports a nominal cross-section of 6mm², accommodating wire sizes from 0.5mm² to 10mm² or #20AWG to #8AWG. The terminal block utilizes Push-in CAGE CLAMP spring connections and is designed for DIN-35 rail mounting with a width of 69.5mm, equivalent to model 20078875.
- actuation type:
- Push-in || Operating tool
- color:
- Multicoloured
- connectable conductor materials:
- Copper
- connection technology:
- Push-in CAGE CLAMP
- country of origin sales organisation germany:
- DE
- depth from upper edge of din rail:
- 65.3 mm / 2.571 inch
- design:
- Angled
- fine stranded conductor:
- 0.5 10 mm / 20 8 AWG
- fine stranded conductor with ferrule push in termination:
- 2.5 6 mm / 16 10 AWG
- fine stranded conductor with insulated ferrule:
- 0.5 6 mm / 20 10 AWG
- fine stranded conductor with uninsulated ferrule:
- 1.5 6 mm / 16 10 AWG
- fire load:
- 3.223 MJ
- flammability class per ul94:
- V0
- height:
- 99.6 mm / 3.921 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 3) Overvoltage category III / Pollution degree 3
- marking level:
- Center/side marking
- module width:
- 8 mm / 0.315 inch
- mounting type:
- DIN-35 rail
- nominal cross section:
- 6 mm
- nominal voltage iii 3:
- 500 V
- packaging type:
- Box
- rated surge voltage iii 3:
- 6 kV
- solid conductor:
- 0.5 10 mm / 20 8 AWG
- solid conductor push in termination:
- 1 10 mm / 14 8 AWG
- strip length:
- 13 15 mm / 0.51 0.59 inch
- weight:
- 196.330 g
- width:
- 69.5 mm / 2.736 inch
- wiring direction:
- Front-entry wiring
