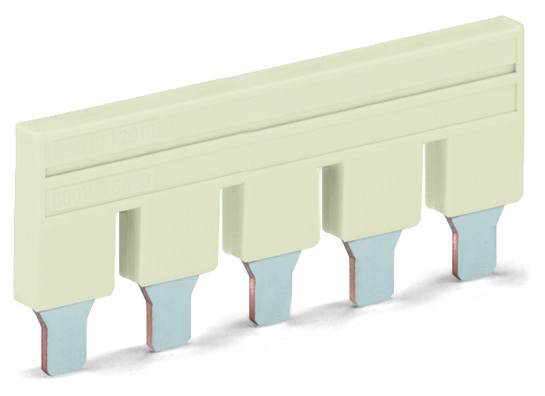

WAGO 2010-405 Pack of 25

SKU:

2010-405

UPC:

MPN:

857-714

Condition:

New

Availability:

In our warehouse: 95

circuit type:

2-wire connection || Zero-voltage switching

color:

Gray

connection technology:

Push-in CAGE CLAMP

country of origin sales organisation germany:

CN

depth from upper edge of din rail:

81 mm / 3.189 inch

dielectric strength control load circuit ac 1 min:

3.75 kVrms

fine stranded conductor:

0.34 2.5 mm / 22 14 AWG

fire load:

0.000 MJ

height:

94 mm / 3.701 inch

input voltage range high level:

DC 20 28.8 V

input voltage range low level:

DC 0 10 V

leakage current at rated voltage:

¤ 1.5 mA

limiting continuous current:

0.0833333333333333

mounting type:

DIN-35 rail

nominal input current at un:

9.2 mA

nominal input voltage un:

DC 24 V

nominal output voltage:

AC 230 V

note:

Optocouplers and solid state relays are designed for use in signal processing networks, which are not supplied by the low-voltage power supply networks.

operating altitude max:

2000 m

output voltage range:

AC 24 240 V

packaging type:

Box

processing temperature:

-25 +50 C

protection type:

IP20

relative humidity:

5 95 % (no condensation permissible)

solid conductor:

0.34 2.5 mm / 22 14 AWG

standards specifications:

EN 61000-6-2 || EN 61000-6-3 || EN 61373 || EN 61010-2-201 || UL 508

status indicator:

Yellow LED

strip length:

9 10 mm / 0.35 0.39 inch

surrounding air temperature operation at un:

-20 60 C

surrounding air temperature storage:

-40 70 C

switching current min:

22 mA

switching frequency:

50 Hz / 60 Hz

turn off time:

¤ 10 ms

turn on time:

¤ 10 ms

voltage drop at output max:

¤ AC 1.6 V

wago basic relay:

857-167

weight:

28.622 g

width:

6 mm / 0.236 inch
