Description
Electrical Data
- Rated voltage CSA (Use Group B): 600 V
- Rated current CSA (Use Group B): 80 A
- Rated voltage CSA (Use Group C): 600 V
- Rated current CSA (Use Group C): 80 A
Connection Data
- Connection technology: Push-in CAGE CLAMP<sup></sup>
- Actuation type: Operating tool
- Connectable conductor materials: Copper
- Nominal cross section: 16 mm
- Solid conductor: 0.5 16 mm / 20 6 AWG
- Solid conductor, push-in termination: 6 16 mm / 14 6 AWG
- Fine-stranded conductor: 0.5 25 mm / 20 4 AWG
- Fine-stranded conductor with ferrule with plastic collar: 6 16 mm / 10 6 AWG
- Fine-stranded conductor with ferrule, push-in termination, from: 6 16 mm / 10 6 AWG
- Strip length: 18 20 mm / 0.71 0.79 inch
- Total number of connection points: 2
- Total number of potentials: 1
- Number of levels: 1
- Type of wiring: Front-entry wiring
- Note (conductor cross-section): Depending on the conductor characteristic, a conductor with a smaller cross section can also be inserted via push-in termination.
- Number of jumper slots: 2
Geometrical Data
- Width: 12 mm / 0.472 inch
- Height from upper-edge of DIN-35 rail: 36.9 mm / 1.453 inch
- Depth: 69.8 mm / 2.748 inch
Mechanical Data
- Design: horizontal
- Type of mounting: DIN-35 rail
- Marking level: Center/side marking
Material Data
- Color: white
- Insulating material: Polyamide 66 (PA 66)
- Fire load: 0.280 MJ
- Weight: 36.309 g
Commercial data
- Packaging type: BOX
- Country of origin: DE
- GTIN: 4050821193739
- Customs Tariff No.: 85369010000

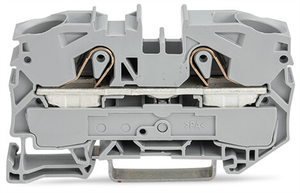

The WAGO 2016 TOPJOB S series shield terminal block is a white, 1-deck/level component with side/lateral and center marking slots, suitable for Ex e II applications. It features a 1 shield-through pole for 2 wires, each with a push-in connection, and supports a nominal cross-section of 16mm² for the main feed-through conductor. It accommodates wire sizes from 0.5mm² to 25mm² or #20AWG to #4AWG, utilizing Push-in CAGE CLAMP spring connections. The terminal block mounts on a DIN-35 rail (35 x 15 / 35 x 7.5) and has a width of 12mm, equivalent to model 20161208.
