| Description | Push-in type jumper bar; insulated; 3-way; Nominal current 76 A | ||||||||||||||||||||||||||||||||
| Remarks | |||||||||||||||||||||||||||||||||
| Item properties | Miscellaneous
| ||||||||||||||||||||||||||||||||

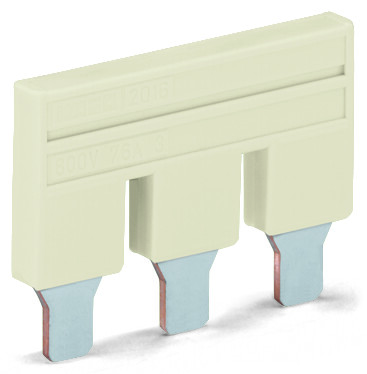

The Insulated push-in type comb-style jumper bar from WAGO's 2016 TOPJOB S series is a 3-way, 3-pole (3P) component with a rated current of 76A, available in light gray color, and is equivalent to model number 2016403.
- color:
- Light gray
- country of origin sales organisation germany:
- DE
- depth:
- 23 mm / 0.906 inch
- fire load:
- 0.029 MJ
- height:
- 4.1 mm / 0.161 inch
- jumper assignment:
- 3-way
- nominal voltage iii 3:
- 800 V
- packaging type:
- Bag
- rated current:
- 76 A
- rated current ex e ii:
- 65 A
- weight:
- 7.561 g
- width:
- 33.4 mm / 1.315 inch
