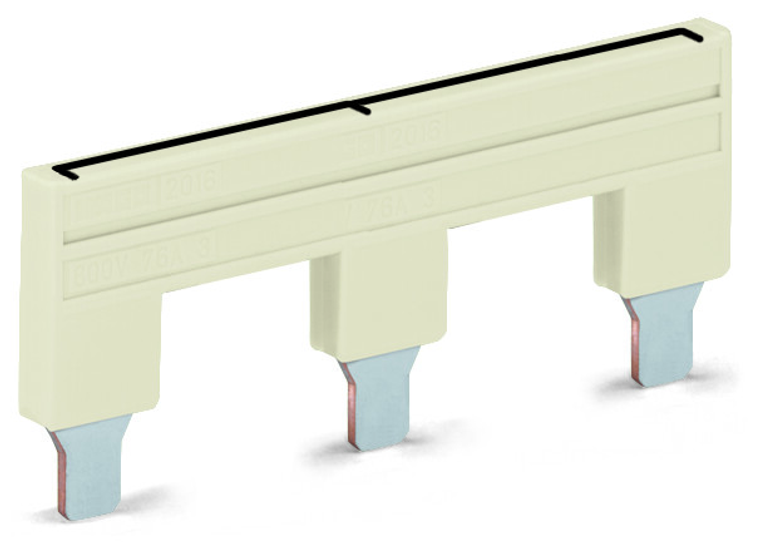

TOPJOBS jumper; Wye configuration; for 2016 series; insulated; 3-way (1-3-5); light-gray.
The Insulated Star Point Jumper from WAGO's 2016 TOPJOB S series is a 3-way (1-3-5) connector with 3 poles (3P) in a light gray color, equivalent to the model number 2016405011000.
- color:
- Light gray
- country of origin sales organisation germany:
- DE
- depth:
- 23 mm / 0.906 inch
- fire load:
- 0.051 MJ
- height:
- 4.1 mm / 0.161 inch
- jumper assignment:
- 38355
- nominal voltage iii 3:
- 800 V
- packaging type:
- Bag
- rated surge voltage iii 3:
- 8 kV
- weight:
- 10.640 g
- width:
- 57.5 mm / 2.264 inch
