Wago

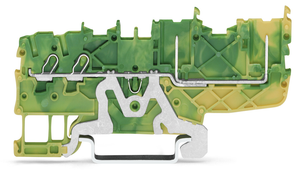

WAGO 2020-1307

SKU:

2020-1307

UPC:

MPN:

2020-1307

Condition:

New

actuation type:

Operating tool || Push-in

color:

Green-yellow

connectable conductor materials:

Copper

connection technology:

Push-in CAGE CLAMP

country of origin sales organisation germany:

CN

depth from upper edge of din rail:

32.5 mm / 1.28 inch

design:

Horizontal type

fine stranded conductor:

0.14 1.5 mm / 24 16 AWG

fine stranded conductor with ferrule push in termination:

0.5 0.75 mm / 20 18 AWG

fine stranded conductor with insulated ferrule:

0.14 0.75 mm / 24 18 AWG

fire load:

0.000 MJ

flammability class per ul94:

V0

height:

60.5 mm / 2.382 inch

insulation material:

Polyamide (PA66)

marking level:

Center/side marking

mounting type:

DIN-35 rail

nominal cross section:

1 mm

note conductor cross section:

Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.

number of connection points:

2

number of connection points 2:

1

packaging type:

Box

ratings per:

IEC/EN 60947-7-2

solid conductor:

0.14 1.5 mm / 24 16 AWG

solid conductor push in termination:

0.5 1.5 mm / 20 16 AWG

strip length:

9 11 mm / 0.35 0.43 inch

weight:

6.570 g

width:

3.5 mm / 0.138 inch

wiring direction:

Front-entry wiring
