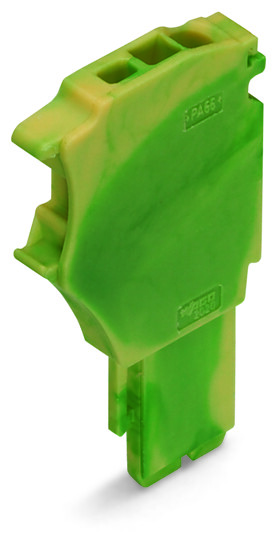

WAGO 2020-167 Start Module for 1-Conductor Female Connector, 1.5 mm², 1-Pole, Green-Yellow
Wago
$2.57
Start module for 1-conductor female connector; Push-in CAGE CLAMP; 1.5 mm²; Pin spacing 3.5 mm; 1-pole; with integrated end plate; 1,50 mm²; green-yellow.
The WAGO 2020 X-COM S-Mini series start module is a 1-conductor plug connector with a pin spacing of 3.5mm, designed for 1-pole (1P) connections. It supports wire sizes from 0.14mm² to 1.5mm² or #24AWG to #16AWG and has a rated current of 13.5A. The connector features a green-yellow color and utilizes Push-in CAGE CLAMP spring connections for secure and easy installation. It has a plug-in mounting width of 4.2mm and is equivalent to the model 2020167.
- actuation type:
- Operating tool || Push-in
- color:
- Green-yellow
- connectable conductor materials:
- Copper
- connection technology:
- Push-in CAGE CLAMP
- connector connection type:
- For conductor
- contact type pluggable connector:
- Female connector/socket
- country of origin sales organisation germany:
- CN
- depth:
- 22.4 mm / 0.882 inch
- fine stranded conductor:
- 0.14 1.5 mm / 24 16 AWG
- fine stranded conductor with ferrule push in termination:
- 0.5 0.75 mm / 20 18 AWG
- fine stranded conductor with insulated ferrule:
- 0.14 0.75 mm / 24 18 AWG
- fire load:
- 0.056 MJ
- flammability class per ul94:
- V0
- height:
- 40.5 mm / 1.594 inch
- insulation material:
- Polyamide (PA66)
- marking level:
- Side marking
- nominal cross section:
- 1 mm
- note conductor cross section:
- Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
- packaging type:
- Box
- pole no:
- 1
- ratings per:
- IEC/EN 61984
- safety information 1:
- According to EN 61984, pluggable connectors without current interrupting capacity must not be mated or unmated when live or under load.
- safety information 2:
- Notice: An appropriate end plate must be applied to the carrier terminal blocks after each female plug.
- solid conductor:
- 0.14 1.5 mm / 24 16 AWG
- solid conductor push in termination:
- 0.5 1.5 mm / 20 16 AWG
- strip length:
- 9 11 mm / 0.35 0.43 inch
- weight:
- 2.790 g
- width:
- 3.5 mm / 0.138 inch
- wiring direction:
- Front-entry wiring
