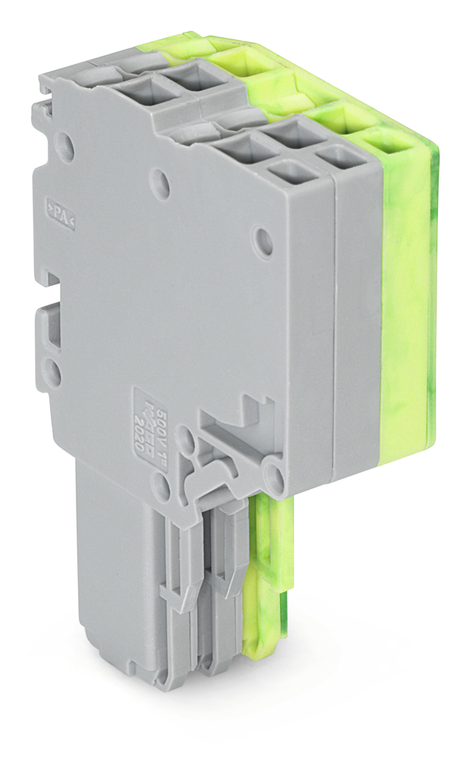

WAGO 2020-203/000-036 2-conductor female connector; 1.5 mm²; 3-pole; 1,50 mm²; gray, green-yellow

SKU:

51229552

UPC:

MPN:

2020-203/000-036

Condition:

New

actuation type:

Operating tool || Push-in

approvals per:

UL 1059

color:

Gray, green-yellow

connectable conductor materials:

Copper

connection technology:

Push-in CAGE CLAMP

connector connection type:

For conductor

contact type pluggable connector:

Female connector/socket

country of origin sales organisation germany:

DE

depth:

25 mm / 0.984 inch

fine stranded conductor:

0.14 1.5 mm / 24 16 AWG

fine stranded conductor with ferrule push in termination:

0.5 0.75 mm / 20 18 AWG

fine stranded conductor with insulated ferrule:

0.14 0.75 mm / 24 18 AWG

fire load:

0.148 MJ

flammability class per ul94:

V0

height:

40.5 mm / 1.594 inch

insulation material:

Polyamide (PA66)

legend ratings:

(III / 3) Overvoltage category III / Pollution degree 3

marking level:

Side marking

module width:

3.5 mm / 0.138 inch

nominal cross section:

1 mm

nominal voltage iii 3:

500 V

note conductor cross section:

Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.

packaging type:

Box

pole no:

3

rated current:

13.5 A

rated current csa use group b:

0.416666666666667

rated current csa use group c:

0.416666666666667

rated current csa use group d:

0.416666666666667

rated current ul use group b:

15 A

rated current ul use group c:

15 A

rated current ul use group d:

15 A

rated surge voltage iii 3:

6 kV

rated voltage csa use group b:

300 V

rated voltage csa use group c:

300 V

rated voltage csa use group d:

300 V

rated voltage ul use group b:

300 V

rated voltage ul use group c:

300 V

rated voltage ul use group d:

300 V

ratings per:

IEC/EN 61984

safety information 1:

According to EN 61984, pluggable connectors without current interrupting capacity must not be mated or unmated when live or under load.

safety information 2:

Notice: An appropriate end plate must be applied to the carrier terminal blocks after each female plug.

solid conductor:

0.14 1.5 mm / 24 16 AWG

solid conductor push in termination:

0.5 1.5 mm / 20 16 AWG

strip length:

9 11 mm / 0.35 0.43 inch

weight:

8.800 g

width:

11.2 mm / 0.441 inch

wiring direction:

Front-entry wiring
