Wago

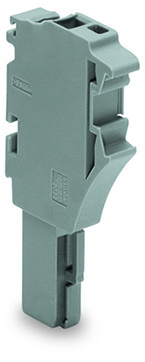

WAGO 2022-107/000-016

SKU:

2022-107/000-016

UPC:

MPN:

2022-107/000-016

Condition:

New

actuation type:

Operating tool || Push-in

color:

Green-yellow

connectable conductor materials:

Copper

connection technology:

Push-in CAGE CLAMP

connector connection type:

For conductor

contact type pluggable connector:

Female connector/socket

country of origin sales organisation germany:

DE

depth:

22.4 mm / 0.882 inch

fine stranded conductor:

0.25 4 mm / 22 12 AWG

fine stranded conductor with ferrule push in termination:

1 2.5 mm / 18 14 AWG

fine stranded conductor with insulated ferrule:

0.25 2.5 mm / 22 14 AWG

fire load:

0.378 MJ

flammability class per ul94:

V0

height:

40.5 mm / 1.594 inch

insulation material:

Polyamide (PA66)

marking level:

Side marking

module width:

5.2 mm / 0.205 inch

nominal cross section:

2.5 mm

note conductor cross section:

Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.

packaging type:

Box

pole no:

7

ratings per:

IEC/EN 61984

safety information 1:

According to EN 61984, pluggable connectors without current interrupting capacity must not be mated or unmated when live or under load.

solid conductor:

0.25 4 mm / 22 12 AWG

solid conductor push in termination:

0.75 4 mm / 18 12 AWG

strip length:

10 12 mm / 0.39 0.47 inch

weight:

23.025 g

width:

36.4 mm / 1.433 inch

wiring direction:

Front-entry wiring
